nfrared Emitters

- Ceramic Infrared Emitters
- Quartz Tube Infrared Emitters

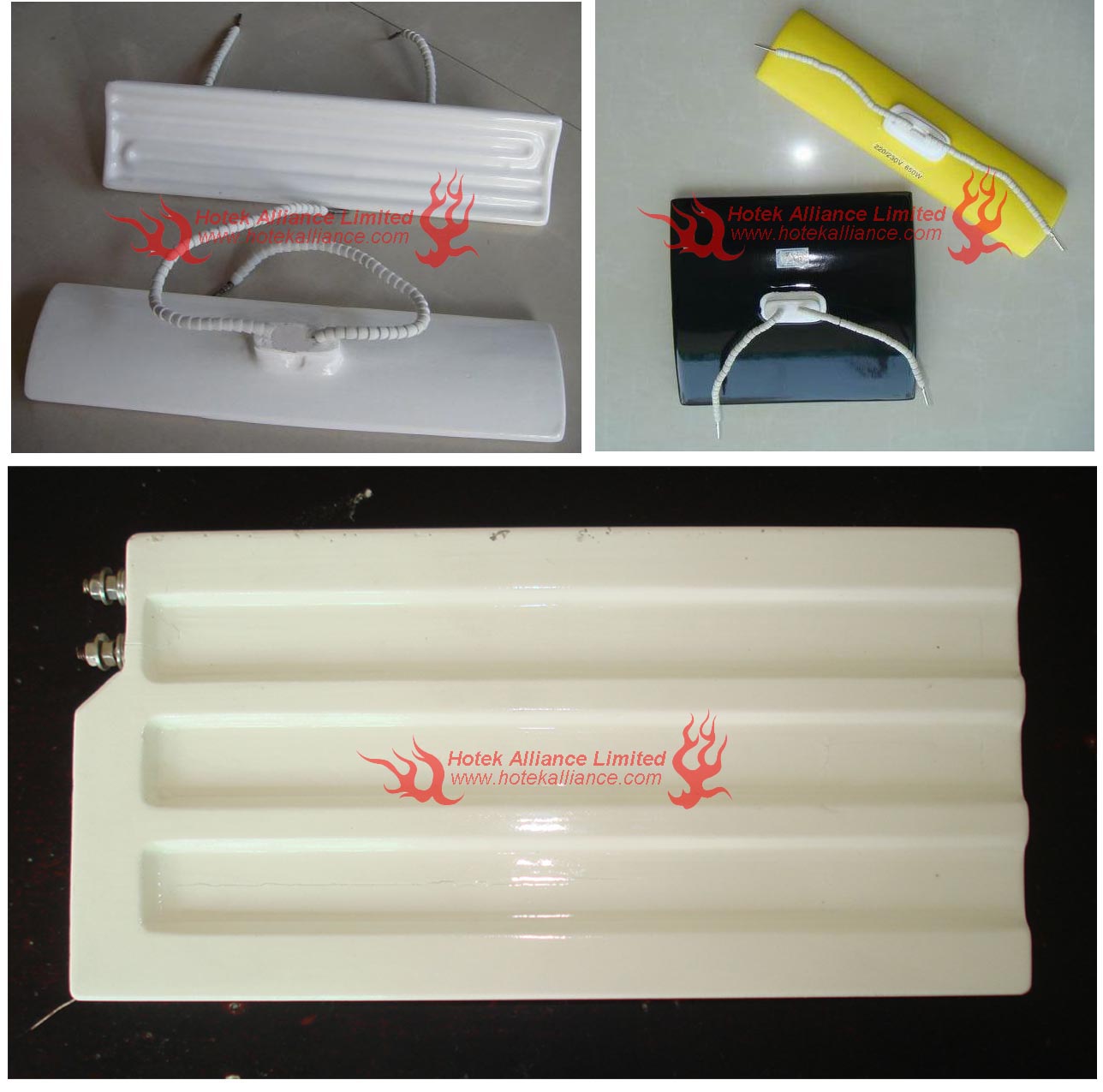

Ceramic Infrared Emitters
Application
Food industry, plastic industry, medical industry, spray painting, surface processing, packing, electroplate etc.

Standard Shap & Wattage
Dimension
(mm)
Shape
Wattage
(Kw)
Dimension
(mm)
Shape
Wattage
(Kw)
245X65
Curved Face
0.25-1.0
300X300X16
Flat Face
0.8-1.5
245X60
Curved Face
0.5-1.0
240X160X16
Flat Face
0.6-1.0
125X65
Curved Face
0.2-0.5
¦µ70
Flat Face
0.1-0.2
120X60
Curved Face
0.1-0.325
¦µ100
Flat Face
0.2-0.3
120X60
Curved Face
0.1-0.325
¦µ140
Flat Face
0.3-0.4
120X120
Curved Face
0.1-0.8
¦µ150X¦µ100X¦µ60
Half Flat
0.25-0.3
120X120
Curved Face
0.1-0.8

Standard Dimensions
Curved Transmitters
Flat Transmitters  (mm)
Flat Plate Transmitters
Dimension    (mm)
120X60
Dimension     (mm)
120X60
120X120X25mm
326X38
125X70
122X122
110X110
240X60
125X125
210X210
245X60
130X130
120X120
240X75
130X138
Screw-in Bulb Transmitters
240X80
240X60
120X120
240X75
Wattage(W)
50/60/75/100/150/200/250
260X90
245X85

Standard Colors: white, black and yellow.
Terminal Options: pin, ring or spade.

Custom voltages and wattages are available. Thermocouple is available.

Quartz Tube Infrared Emitters

Structure

The heater is made of metal sheath, milk white far-infrared tube with radiation,  NiCr alloy wire and high frequency ceramic components. If need, a thermocouple can be built in.

Technical Parameter

1. Rated Voltage: 380V, 220V, 110V, 55V (Standard: 220V)
2. Heating Wattage: 300W to 1000W(Standard: 325W, 400W, 500W, 650W,800W and 1000W)
3. Heat Time: in a minute.
4. Temperature of Surface:
    Low Temp. type: 100¡æ-460¡æ
    Middle Temp. type: 500¡æ-580¡æ
    High Temp. type: 700¡æ-1100¡æ
5. Spectrum Range: 2.5µm-6µm
6. Spectrum Emission Coefficient:0.92(wavelength: 4µm -8µm, 11µm-25µm)

Standard Outline Dimension

122mmX62mmX25mm, 132mmX62mmX25mm
120mmX120mmX25mm
242mmX62mmX25mm
118mmX60mmX25mm, 122mmX62mmX25mm
248mmX62mmX25mm, 265mmX80mmX25mm, 280mmX80mmX25mm

Delivery is 3 weeks.

We also supply quartz tubes.
