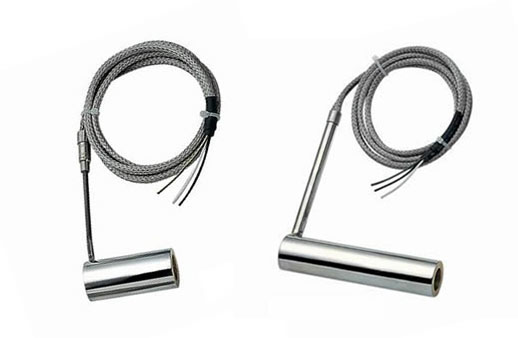

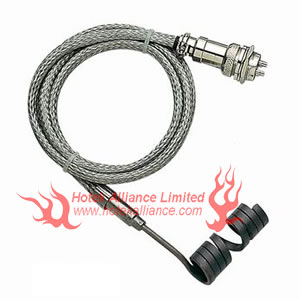

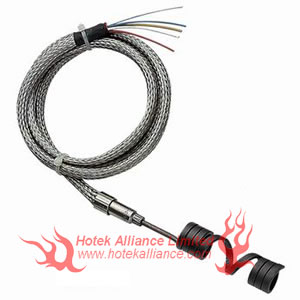

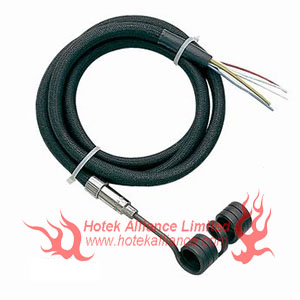

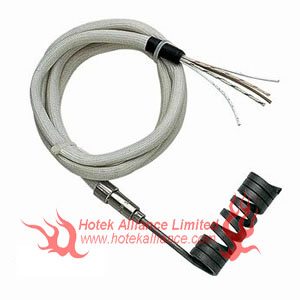

Coil Heater

Application

Hot runner systems
Plastic industry
Packing machine
Foundry industry
Medical equipment

Standard Dimensions
Square Cross Section: 3mmx3mm, 3.3mmx3.3mm, 3.4mmx3.4mm, 3.5mmx3.5mm, 4mmx4mm
Rectangular Cross Section: 4mmx2mm, 4.2mmx2.2mm
Round Cross Section:1.6mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm, 5mm

Inner Diameter of Coil: ø10, ø12, ø16, ø18, ø20, ø25, ø30, ø35, ø38
Length of Coil: 40mm, 60mm, 80mm, 100mm, 120mm, 150mm, 180mm, 200mm
Length of lead: 500mm, 1000mm, 1200mm, 1500mm, 2000mm
Rated Voltage: 220V, 230V
Wattage: 200W -1500W
Thermocouple: can be built with or without J, K thermocouple


When you order, please supply us:
Cross section
ID, OD and Length of the coil
Thermocouple Type
Termination and leads condition
Wattage and Voltage
Sketch or sample for custom's design

Please find the detailes as below for reference.

Round Cross Section: 1.8mmX1.8mm

Diameter
Length
mm
20
40
60
80
100
120
140
160
180
200
220
240
260
280
6.0
　
120W
150W
200W
250W
300W
350W
400W
450W
500W
550W
600W
650W
700W
8.0
　
150W
200W
250W
300W
350W
400W
450W
500W
550W
600W
650W
700W
750W
8.5
　
150W
200W
250W
300W
350W
400W
450W
500W
550W
600W
650W
700W
750W
10.0
　
200W
250W
300W
400W
450W
500W
550W
600W
650W
700W
750W
800W
　
12.0
　
200W
300W
350W
450W
500W
550W
600W
650W
700W
750W
800W

　
13.0
　
200W
300W
350W
450W
500W
550W
600W
650W
700W
750W
800W
　
　
14.0
120W
250W
350W
400W
500W
550W
600W
650W
700W
750W
800W
　
　
　
15.0
120W
250W
350W
400W
500W
550W
600W
650W
700W
750W
800W
　
　
　
16.0
150W
250W
400W
450W
600W
650W
700W
750W
800W
　
　
　
　
　
18.0
150W
300W
400W
500W
650W
700W
750W
800W
　
　
　
　
　
　
19.0
150W
300W
450W
550W
700W
750W
800W
　
　
　
　
　
　
　
20.0
200W
300W
450W
550W
700W
750W
800W
　
　
　
　
　
　
　
22.0
200W
300W
450W
550W
750W
800W
　
　
　
　
　
　
　
　
24.0
200W
300W
450W
550W
800W
　
　
　
　
　
　
　
　
　
25.0
200W
350W
500W
600W
800W
　
　
　
　
　
　
　
　
　
28.0
250W
350W
500W
600W
800W
　
　
　
　
　
　
　
　
　
30.0
250W
350W
550W
700W
800W
　
　
　
　
　
　
　
　
　
32.0
250W
400W
550W
700W
800W
　
　
　
　
　
　
　
　
　
35.0
250W
400W
600W
800W
　
　
　
　
　
　
　
　
　
　
38.0
300W
450W
600W
800W
　
　
　
　
　
　
　
　
　
　
40.0
300W
450W
650W
800W
　
　
　
　
　
　
　
　
　
　
42.0
300W
500W
650W
800W
　
　
　
　
　
　
　
　
　
　
Power at 230V

Round Cross Section: 2.0mmX2.0mm

Diameter
Length
mm
20
40
60
80
100
120
140
160
180
200
220
240
260
280
6.0
　
120W
150W
200W
250W
300W
350W
　
　
　
　
　
　
　
8.0
　
150W
200W
250W
300W
350W
　
　
　
　
　
　
　
　
8.5
　
150W
200W
250W
300W
350W
　
　
　
　
　
　
　
　
10.0
　
200W
250W
300W
350W
　
　
　
　
　
　
　
　
　
12.0
　
200W
300W
350W
　
　
　
　
　
　
　
　
　
　
13.0
　
200W
300W
350W
　
　
　
　
　
　
　
　
　
　
14.0
120W
250W
300W
　
　
　
　
　
　
　
　
　
　
　
15.0
120W
250W
300W
　
　
　
　
　
　
　
　
　
　
　
16.0
120W
250W
300W
　
　
　
　
　
　
　
　
　
　
　
18.0
150W
300W
350W
　
　
　
　
　
　
　
　
　
　
　
19.0
150W
350W
　
　
　
　
　
　
　
　
　
　
　
　
20.0
150W
350W
　
　
　
　
　
　
　
　
　
　
　
　
22.0
200W
350W
　
　
　
　
　
　
　
　
　
　
　
　
24.0
200W
　
　
　
　
　
　
　
　
　
　
　
　
　
25.0
200W
　
　
　
　
　
　
　
　
　
　
　
　
　
28.0
250W
　
　
　
　
　
　
　
　
　
　
　
　
　
30.0
250W
　
　
　
　
　
　
　
　
　
　
　
　
　
32.0
250W
　
　
　
　
　
　
　
　
　
　
　
　
　
35.0
250W
　
　
　
　
　
　
　
　
　
　
　
　
　
38.0
300W
　
　
　
　
　
　
　
　
　
　
　
　
　
40.0
300W
　
　
　
　
　
　
　
　
　
　
　
　
　
42.0
300W
　
　
　
　
　
　
　
　
　
　
　
　
　
Power at 230V



























Round Cross Section: 2.7mmX2.7mm

Diameter
Length
mm
20
40
60
80
100
120
140
160
180
200
220
240
260
280
6.0
　
120W
150W
200W
250W
300W
350W
400W
　
　
　
　
　
　
8.0
　
150W
200W
250W
300W
350W
400W
450W
　
　
　
　
　
　
8.5
　
150W
200W
250W
300W
350W
400W
450W
　
　
　
　
　
　
10.0
　
200W
250W
300W
350W
400W
500W
550W
　
　
　
　
　
　
12.0
　
200W
300W
350W
400W
500W
550W
600W
　
　
　
　
　
　
13.0
　
200W
300W
350W
400W
500W
550W
600W
　
　
　
　
　
　
14.0
120W
250W
300W
400W
500W
600W
600W
　
　
　
　
　
　
　
15.0
120W
250W
300W
400W
500W
600W
600W
　
　
　
　
　
　
　
16.0
120W
250W
300W
400W
500W
600W
600W
　
　
　
　
　
　
　
18.0
150W
300W
350W
400W
500W
600W
600W
　
　
　
　
　
　
　
19.0
150W
350W
450W
500W
600W
600W
　
　
　
　
　
　
　
　
20.0
150W
350W
450W
500W
600W
　
　
　
　
　
　
　
　
　
22.0
200W
350W
450W
550W
600W
　
　
　
　
　
　
　
　
　
24.0
200W
400W
500W
550W
600W
　
　
　
　
　
　
　
　
　
25.0
200W
400W
500W
550W
600W
　
　
　
　
　
　
　
　
　
28.0
250W
400W
500W
600W
　
　
　
　
　
　
　
　
　
　
30.0
250W
400W
600W
600W
　
　
　
　
　
　
　
　
　
　
32.0
250W
400W
600W
600W
　
　
　
　
　
　
　
　
　
　
35.0
250W
400W
600W
　
　
　
　
　
　
　
　
　
　
　
38.0
300W
500W
600W
　
　
　
　
　
　
　
　
　
　
　
40.0
300W
500W
600W
　
　
　
　
　
　
　
　
　
　
　
42.0
300W
500W
600W
　
　
　
　
　
　
　
　
　
　
　
Power at 230V



























Round Cross Section: 3.0mmx3.0mm

800W
Diameter
　
Length
mm
inch
20
40
60
80
100
120
140
160
180
200
220
240
260
280
10.0
　
　
200W
300W
350W
400W
450W
500W
600W
650W
650W
700W
700W
800W
800W
12.0
　
　
200W
300W
400W
500W
500W
550W
600W
650W
650W
700W
700W
800W
800W
12.5
1/2”
　
200W
350W
450W
500W
500W
550W
700W
650W
650W
700W
700W
800W
800W
14.0
　
　
250W
350W
450W
500W
500W
600W
700W
800W
800W
900W
900W
1000W
1000W
15.2
　
　
250W
400W
500W
600W
700W
700W
700W
800W
900, W
900W
 1000W
1000W
16.0
5/8”
　
300W
400W
500W
600W
700W
700W
800W
800W
800W
900W
900W
1000W
1000W
18.0
　
200W
300W
450W
550W
600W
700W
700W
800W
900W
900W
1000W
1000W
1200W
1200W
19.0
6/8”
200W
350W
500W
550W
600W
700W
800W
800W
900W
900W
1000W
1000W
1200W
1200W
20.0
　
200W
350W
500W
550W
600W
700W
800W
800W
900W
900W
1000W
1000W
1200W
1200W
22.0
7/8”
200W
350W
500W
550W
700W
800W
800W
800W
900W
900W
1000W
1000W
1200W
1200W
24.0
　
200W
400W
550W
600W
700W
800W
900W
900W
1000W
1000W
1200W
1200W
1500W
1500W
25.0
1”
200W
400W
550W
600W
700W
800W
900W
900W
1000W
1000W
1200W
1200W
1500W
1500W
28.0
　
250W
450W
600W
700W
800W
900W
1000W
1000W
1200W
1200W
1300W
1300W
1500W
1500W
30.0
　
250W
450W
600W
700W
800W
900W
1000W
1000W
1200W
1200W
1300W
1300W
1500W
1500W
32.0
11/4”
300W
500W
600W
700W
800W
900W
1000W
1000W
1200W
1200W
1300W
1300W
1500W
1500W
35.0
　
300W
550W
650W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
38.0
11/2”
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
40.0
　
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
42.0
　
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
45.0
　
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
48.0
　
400W
400W
900W
1200W
1200W
1500W
1500W
1500W
1800W
1800W
1800W
1800W
2200W
2200W
50.0
2”
400W
600W
900W
1200W
1200W
1500W
1500W
1500W
1800W
1800W
1800W
1800W
2200W
2200W
Power at 230V





























Round Cross Section: 3.3mmx3.3mm


Diameter
　
Length
mm
inch
20
40
60
80
100
120
140
160
180
200
220
240
260
280
10.0
　
　
200W
300W
350W
400W
450W
500W
600W
650W
650W
700W
700W
800W
800W
12.0
　
　
200W
300W
400W
500W
500W
550W
600W
650W
650W
700W
700W
800W
800W
12.5
1/2”
　
200W
350W
450W
500W
500W
550W
700W
650W
650W
700W
700W
800W
800W
14.0
　
　
250W
350W
450W
500W
500W
600W
700W
800W
800W
900W
900W
1000W
1000W
15.2
　
　
250W
400W
500W
600W
700W
700W
700W
800W
800W
900W
900W
1000W
1000W
16.0
5/8”
　
300W
400W
500W
600W
700W
700W
800W
800W
800W
900W
900W
1000W
1000W
18.0
　
200W
300W
450W
550W
600W
700W
700W
800W
900W
900W
1000W
1000W
1200W
1200W
19.0
6/8”
200W
350W
500W
550W
600W
700W
800W
800W
900W
900W
1000W
1000W
1200W
1200W
20.0
　
200W
350W
500W
550W
600W
700W
800W
800W
900W
900W
1000W
1000W
1200W
1200W
22.0
7/8”
200W
350W
500W
550W
700W
800W
800W
800W
900W
900W
1000W
1000W
1200W
1200W
24.0
　
200W
400W
550W
600W
700W
800W
900W
900W
1000W
1000W
1200W
1200W
1500W
1500W
25.0
1”
200W
400W
550W
600W
700W
800W
900W
900W
1000W
1000W
1200W
1200W
1500W
1500W
28.0
　
250W
450W
600W
700W
800W
900W
1000W
1000W
1200W
1200W
1300W
1300W
1500W
1500W
30.0
　
250W
450W
600W
700W
800W
900W
1000W
1000W
1200W
1200W
1300W
1300W
1500W
1500W
32.0
11/4”
300W
500W
600W
700W
800W
900W
1000W
1000W
1200W
1200W
1300W
1300W
1500W
1500W
35.0
　
300W
550W
650W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
38.0
11/2”
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
40.0
　
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
42.0
　
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
45.0
　
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
48.0
　
400W
400W
900W
1200W
1200W
1500W
1500W
1500W
1800W
1800W
1800W
1800W
2200W
2200W
50.0
2”
400W
600W
900W
1200W
1200W
1500W
1500W
1500W
1800W
1800W
1800W
1800W
2200W
2200W
Power at 230V

Round Cross Section: 3.5mmX3.5mm




Diameter
　
Length
mm
inch
20
40
60
80
100
120
140
160
180
200
220
240
260
280
10.0
　
　
200W
300W
350W
400W
450W
500W
600W
650W
650W
700W
700W
800W
800W
12.0
　
　
200W
300W
400W
500W
500W
550W
600W
650W
650W
700W
700W
800W
800W
12.5
1/2”
　
200W
350W
450W
500W
500W
550W
700W
650W
650W
700W
700W
800W
800W
14.0
　
　
250W
350W
450W
500W
500W
600W
700W
800W
800W
900W
900W
1000W
1000W
15.2
　
　
250W
400W
500W
600W
700W
700W
700W
800W
800W
900W
900W
1000W
1000W
16.0
5/8”
　
300W
400W
500W
600W
700W
700W
800W
800W
800W
900W
900W
1000W
1000W
18.0
　
200W
300W
450W
550W
600W
700W
700W
800W
900W
900W
1000W
1000W
1200W
1200W
19.0
6/8”
200W
350W
500W
550W
600W
700W
800W
800W
900W
900W
1000W
1000W
1200W
1200W
20.0
　
200W
350W
500W
550W
600W
700W
800W
800W
900W
900W
1000W
1000W
1200W
1200W
22.0
7/8”
200W
350W
500W
550W
700W
800W
800W
800W
900W
900W
1000W
1000W
1200W
1200W
24.0
　
200W
400W
550W
600W
700W
800W
900W
900W
1000W
1000W
1200W
1200W
1500W
1500W
25.0
1”
200W
400W
550W
600W
700W
800W
900W
900W
1000W
1000W
1200W
1200W
1500W
1500W
28.0
　
250W
450W
600W
700W
800W
900W
1000W
1000W
1200W
1200W
1300W
1300W
1500W
1500W
30.0
　
250W
450W
600W
700W
800W
900W
1000W
1000W
1200W
1200W
1300W
1300W
1500W
1500W
32.0
11/4”
300W
500W
600W
700W
800W
900W
1000W
1000W
1200W
1200W
1300W
1300W
1500W
1500W
35.0
　
300W
550W
650W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
38.0
11/2”
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
40.0
　
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
42.0
　
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
45.0
　
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
48.0
　
400W
400W
900W
1200W
1200W
1500W
1500W
1500W
1800W
1800W
1800W
1800W
2200W
2200W
50.0
2”
400W
600W
900W
1200W
1200W
1500W
1500W
1500W
1800W
1800W
1800W
1800W
2200W
2200W
Power at 230V

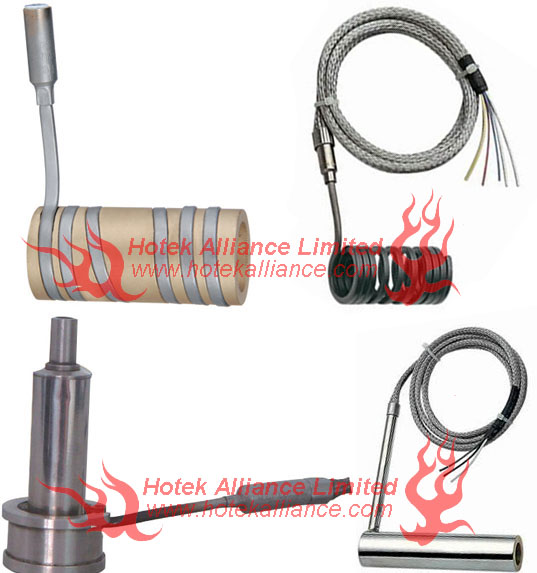

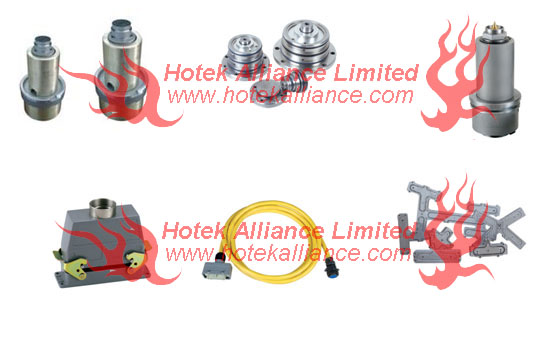

Other Elements for Hot Runner

-  Probe Thermocouple
-  Unformed Heating Bar: NiCr Rod for Coil Heater
-  Other Elements for Hot Runner System

Probe Thermocouple

Diameter of Probe: ø1, ø1.2, ø1.5, ø2
Length of Probe: 60mm, 80mm, 100mm, 120mm, 150mm, 200mm, 300mm
Length of Lead: 500mm, 1000mm, 1200mm, 1500mm, 2000mm
Thermocouple: J, K, E

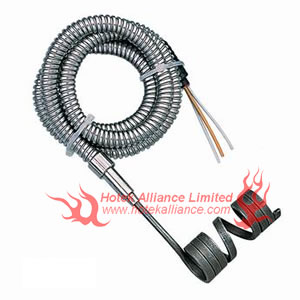

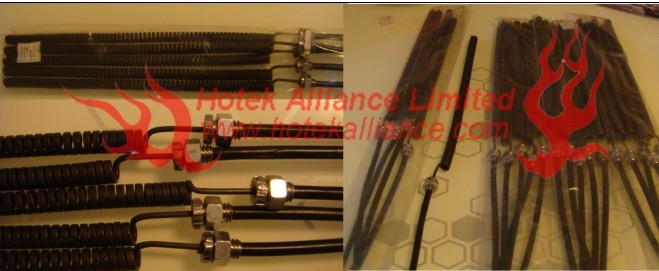

Flexible Heater


Diameter of Flexible Tubular Heater
ø8.5mm, ø8mm, ø6.6mm

Length of Flexible Tubular Heater
400mm, 500mm, 600mm, 800mm, 900mm, 1000mm, 1500mm

Voltage: 230V
Wattage: 500W-2000W
Wattage Load:15W/cm2

Heaters for Hot Runner System


-       Coil Heater
-       Flexible Heater
-       Unformed Heating Bar: NiCr Rod for coil heater
-       Probe Thermocuple

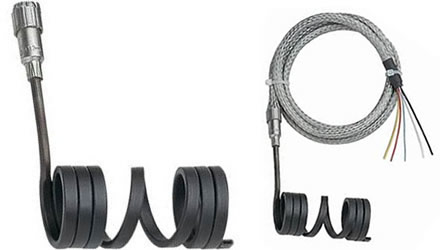

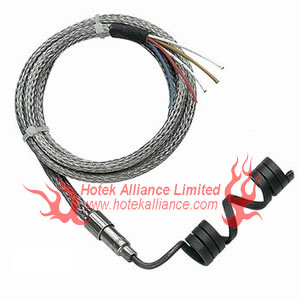

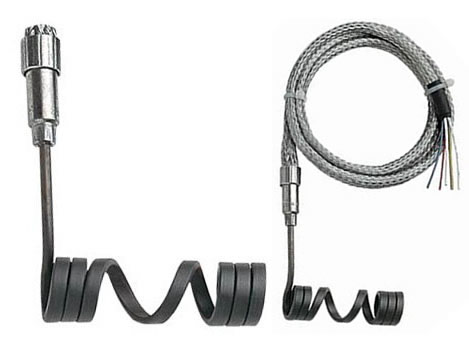

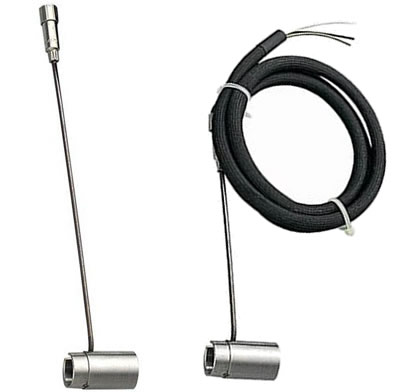

Coil Heater

Application

Hot runner systems
Plastic industry
Packing machine
Foundry industry
Medical equipment

Standard Dimensions
Square Cross Section: 3mmx3mm, 3.3mmx3.3mm, 3.4mmx3.4mm, 3.5mmx3.5mm, 4mmx4mm
Rectangular Cross Section: 4mmx2mm, 4.2mmx2.2mm
Round Cross Section:1.6mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm, 5mm

Inner Diameter of Coil: ø10, ø12, ø16, ø18, ø20, ø25, ø30, ø35, ø38
Length of Coil: 40mm, 60mm, 80mm, 100mm, 120mm, 150mm, 180mm, 200mm
Length of lead: 500mm, 1000mm, 1200mm, 1500mm, 2000mm
Rated Voltage: 220V, 230V
Wattage: 200W -1500W
Thermocouple: can be built with or without J, K thermocouple


When you order, please supply us:
Cross section
ID, OD and Length of the coil
Thermocouple Type
Termination and leads condition
Wattage and Voltage
Sketch or sample for custom's design

Please find the detailes as below for reference.

Round Cross Section: 3.8mmX3.8mm



Diameter
　
Length
mm
inch
20
40
60
80
100
120
140
160
180
200
220
240
260
280
10.0
　
　
200W
300W
350W
400W
450W
500W
600W
650W
650W
700W
700W
800W
800W
12.0
　
　
200W
300W
400W
500W
500W
550W
600W
650W
650W
700W
700W
800W
800W
12.5
1/2”
　
200W
350W
450W
500W
500W
550W
700W
650W
650W
700W
700W
800W
800W
14.0
　
　
250W
350W
450W
500W
500W
600W
700W
800W
800W
900W
900W
1000W
1000W
15.2
　
　
250W
400W
500W
600W
700W
700W
700W
800W
800W
900W
900W
1000W
1000W
16.0
5/8”
　
300W
400W
500W
600W
700W
700W
800W
800W
800W
900W
900W
1000W
1000W
18.0
　
200W
300W
450W
550W
600W
700W
700W
800W
900W
900W
1000W
1000W
1200W
1200W
19.0
6/8”
200W
350W
500W
550W
600W
700W
800W
800W
900W
900W
1000W
1000W
1200W
1200W
20.0
　
200W
350W
500W
550W
600W
700W
800W
800W
900W
900W
1000W
1000W
1200W
1200W
22.0
7/8”
200W
350W
500W
550W
700W
800W
800W
800W
900W
900W
1000W
1000W
1200W
1200W
24.0
　
200W
400W
550W
600W
700W
800W
900W
900W
1000W
1000W
1200W
1200W
1500W
1500W
25.0
1”
200W
400W
550W
600W
700W
800W
900W
900W
1000W
1000W
1200W
1200W
1500W
1500W
28.0
　
250W
450W
600W
700W
800W
900W
1000W
1000W
1200W
1200W
1300W
1300W
1500W
1500W
30.0
　
250W
450W
600W
700W
800W
900W
1000W
1000W
1200W
1200W
1300W
1300W
1500W
1500W
32.0
11/4”
300W
500W
600W
700W
800W
900W
1000W
1000W
1200W
1200W
1300W
1300W
1500W
1500W
35.0
　
300W
550W
650W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
38.0
11/2”
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
40.0
　
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
42.0
　
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
45.0
　
350W
550W
700W
850W
1100W
1250W
1250W
1250W
1500W
1500W
1800W
1800W
2000W
2000W
48.0
　
400W
400W
900W
1200W
1200W
1500W
1500W
1500W
1800W
1800W
1800W
1800W
2200W
2200W
50.0
2”
400W
600W
900W
1200W
1200W
1500W
1500W
1500W
1800W
1800W
1800W
1800W
2200W
2200W
Power at 230v

Rectangular Cross Section: 1.5mmX2.1mm
Diameter
Length
mm
20
40
60
80
100
120
140
160
180
200
220
240
260
280
6.0
　
120W
150W
200W
250W
300W
350W
400W
450W
500W
550W
600W
650W
700W
8.0
　
150W
200W
250W
300W
350W
400W
450W
500W
550W
600W
650W
700W
750W
8.5
　
150W
200W
250W
300W
350W
400W
450W
500W
550W
600W
650W
700W
750W
10.0
　
200W
250W
300W
400W
450W
500W
550W
600W
650W
700W
750W
800W
　
12.0
　
200W
300W
350W
450W
500W
550W
600W
650W
700W
750W
800W

　
13.0
　
200W
300W
350W
450W
500W
550W
600W
650W
700W
750W
800W
　
　
14.0
120W
250W
350W
400W
500W
550W
600W
650W
700W
750W
800W
　
　
　
15.0
120W
250W
350W
400W
500W
550W
600W
650W
700W
750W
800W
　
　
　
16.0
150W
250W
400W
450W
600W
650W
700W
750W
800W
　
　
　
　
　
18.0
150W
300W
400W
500W
650W
700W
750W
800W
　
　
　
　
　
　
19.0
150W
300W
450W
550W
700W
750W
800W
　
　
　
　
　
　
　
20.0
200W
300W
450W
550W
700W
750W
800W
　
　
　
　
　
　
　
22.0
200W
300W
450W
550W
750W
800W
　
　
　
　
　
　
　
　
24.0
200W
300W
450W
550W
800W
　
　
　
　
　
　
　
　
　
25.0
200W
350W
500W
600W
800W
　
　
　
　
　
　
　
　
　
28.0
250W
350W
500W
600W
800W
　
　
　
　
　
　
　
　
　
30.0
250W
350W
550W
700W
800W
　
　
　
　
　
　
　
　
　
32.0
250W
400W
550W
700W
800W
　
　
　
　
　
　
　
　
　
35.0
250W
400W
600W
800W
　
　
　
　
　
　
　
　
　
　
38.0
300W
450W
600W
800W
　
　
　
　
　
　
　
　
　
　
40.0
300W
450W
650W
800W
　
　
　
　
　
　
　
　
　
　
42.0
300W
500W
650W
800W
　
　
　
　
　
　
　
　
　
　
Power at 230V

Rectangular Cross Section: 1.2mmX2.6mm

Diameter
Length
mm
20
40
60
80
100
120
140
160
180
200
220
240
260
6.0
　
120W
150W
200W
250W
300W
350W
　
　
　
　
　
　
8.0
　
150W
200W
250W
300W
350W
　
　
　
　
　
　
　
8.5
　
150W
200W
250W
300W
350W
　
　
　
　
　
　
　
10.0
　
200W
250W
300W
350W
　
　
　
　
　
　
　
　
12.0
　
200W
300W
350W
　
　
　
　
　
　
　
　
　
13.0
　
200W
300W
350W
　
　
　
　
　
　
　
　
　
14.0
120W
250W
300W
　
　
　
　
　
　
　
　
　
　
15.0
120W
250W
300W
　
　
　
　
　
　
　
　
　
　
16.0
120W
250W
300W
　
　
　
　
　
　
　
　
　
　
18.0
150W
300W
350W
　
　
　
　
　
　
　
　
　
　
19.0
150W
350W
　
　
　
　
　
　
　
　
　
　
　
20.0
150W
350W
　
　
　
　
　
　
　
　
　
　
　
22.0
200W
350W
　
　
　
　
　
　
　
　
　
　
　
24.0
200W
　
　
　
　
　
　
　
　
　
　
　
　
25.0
200W
　
　
　
　
　
　
　
　
　
　
　
　
28.0
250W
　
　
　
　
　
　
　
　
　
　
　
　
30.0
250W
　
　
　
　
　
　
　
　
　
　
　
　
32.0
250W
　
　
　
　
　
　
　
　
　
　
　
　
35.0
250W
　
　
　
　
　
　
　
　
　
　
　
　
38.0
300W
　
　
　
　
　
　
　
　
　
　
　
　
40.0
300W
　
　
　
　
　
　
　
　
　
　
　
　
42.0
300W
　
　
　
　
　
　
　
　
　
　
　
　
Power at 230V

Rectangular Cross Section: 1.7mmX3.5mm
Diameter
Length
mm
20
40
60
80
100
120
140
160
180
200
220
240
260
280
6.0
　
120W
150W
200W
250W
300W
350W
400W
　
　
　
　
　
　
8.0
　
150W
200W
250W
300W
350W
400W
450W
　
　
　
　
　
　
8.5
　
150W
200W
250W
300W
350W
 400W
450W
　
　
　
　
　
　
10.0
　
200W
250W
300W
350W
400W
500W
550W
　
　
　
　
　
　
12.0
　
200W
 3, 00W
350W
400W
500W
550W
600W
　
　
　
　
　
　
13.0
　
 200W
300W
350W
400W
500W
550W
600W
　
　
　
　
　
　
14.0
120W
250W
300W
400W
500W
600W
600W
　
　
　
　
　
　
　
15.0
120W
250W
300W
400W
500W
600W
600W
　
　
　
　
　
　
　
16.0
120W
250W
300W
400W
500W
600W
600W
　
　
　
　
　
　
　
18.0
150W
300W
350W
400W
500W
600W
600W
　
　
　
　
　
　
　
19.0
150W
350W
450W
500W
600W
600W
　
　
　
　
　
　
　
　
20.0
150W
350W
450W
500W
600W
　
　
　
　
　
　
　
　
　
22.0
200W
350W
450W
550W
600W
　
　
　
　
　
　
　
　
　
24.0
200W
400W
500W
550W
600W
　
　
　
　
　
　
　
　
　
25.0
200W
400W
500W
550W
600W
　
　
　
　
　
　
　
　
　
28.0
250W
400W
500W
600W
　
　
　
　
　
　
　
　
　
　
30.0
250W
400W
600W
600W
　
　
　
　
　
　
　
　
　
　
32.0
250W
400W
600W
600W
　
　
　
　
　
　
　
　
　
　
35.0
250W
400W
600W
　
　
　
　
　
　
　
　
　
　
　
38.0
300W
500W
600W
　
　
　
　
　
　
　
　
　
　
　
40.0
300W
500W
600W
　
　
　
　
　
　
　
　
　
　
　
42.0
300W
500W
600W
　
　
　
　
　
　
　
　
　
　
　
Power at 230V

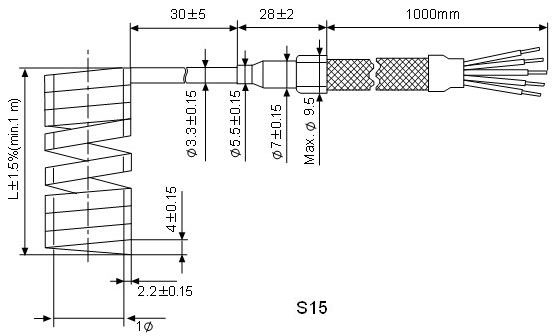

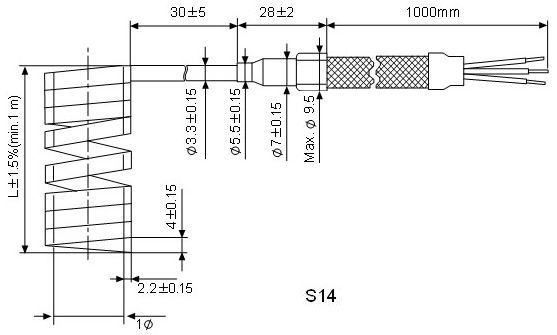

Rectangular Cross Section: 2.2mmX4.0mm

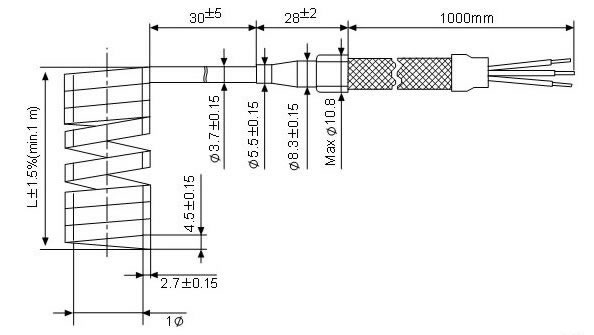

Rectangular Cross Section: 2.7mmX4.5mm

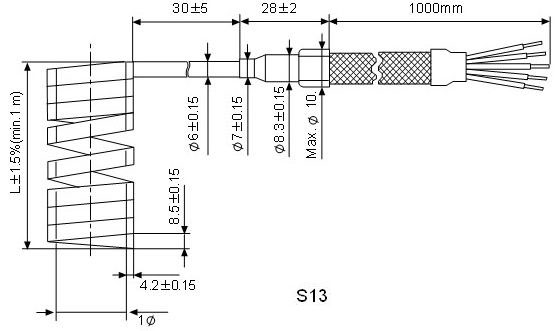

Rectangular Cross Section: 4.2mmX8.5mm

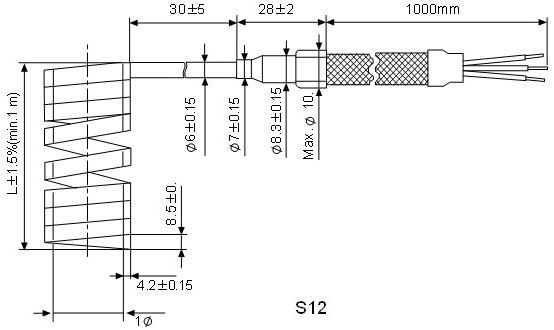

Rectangular Cross Section: 4.2mmX6.5mm


Diameter
Length
mm
inch
20
40
60
80
100
120
140
160
180
200
220
240
260
280
20.0
　
　
400W
500W
650W
800W
900W
1000W
1100W
1200W
1300W
1400W
1500W
1600W
1700W
22.0
7/8”
　
400W
500W
650W
800W
900W
1000W
1100W
1200W
1300W
1400W
1500W
1600W
1700W
24.0
　
　
400W
500W
650W
800W
900W
1000W
1100W
1200W
1300W
1400W
1500W
1600W
1700W
25.0
1”
　
400W
600W
700W
850W
900W
1000W
1100W
1200W
1300W
1400W
1500W
1600W
1700W
28.0
　
　
450W
600W
750W
900W
1000W
1100W
1100W
1200W
1300W
1400W
1500W
1600W
1700W
30.0
　
300W
450W
700W
800W
900W
1000W
1100W
1100W
1200W
1300W
1400W
1500W
1600W
1700W
32.0
11/4”
300W
500W
700W
800W
1000W
1000W
1100W
1300W
1300W
1500W
1700W
1900W
2100W
2300W
35.0
　
300W
550W
800W
900W
1000W
1000W
1100W
1300W
1300W
1500W
1700W
1900W
2100W
2300W
38.0
11/2”
300W
600W
900W
900W
1200W
1300W
1300W
1600W
1600W
1800W
1800W
2000W
2200W
2400W
40.0
　
300W
650W
1000W
1000W
1200W
1300W
1300W
1600W
1600W
1800W
1800W
2000W
2200W
2400W
42.0
　
350W
650W
1000W
1100W
1300W
1500W
1500W
1600W
1600W
1800W
1800W
2000W
2200W
2400W
45.0
　
350W
700W
1000W
1100W
1500W
1500W
1500W
1600W
1600W
1800W
1800W
2000W
2200W
2400W
48.0
　
400W
750W
1000W
1200W
1500W
1500W
1700W
1700W
2000W
2200W
2400W
2600W
2800W
3000W
50.0
2”
400W
800W
1000W
1300W
1500W
1500W
1700W
1700W
2000W
2200W
2400W
2600W
2800W
3000W
55.0
　
400W
800W
1000W
1400W
1800W
2200W
2600W
3000W
3400W
3800W
4200W
　
　
　
60.0
　
450W
800W
1000W
1400W
1800W
2200W
2600W
3000W
3400W
3800W
4200W
　
　
　
65.0
　
500W
900W
1200W
1600W
2000W
2400W
2800W
3200W
3600W
4000W
4300W
　
　
　
70.0
　
550W
900W
1200W
1600W
2000W
2400W
2800W
3200W
3600W
4000W
4300W
　
　
　
75.0
　
550W
900W
1200W
1600W
2000W
2400W
2800W
3200W
3600W
4000W
4300W
　
　
　
80.0
　
600W
1000W
1300W
1600W
2000W
2400W
2800W
3200W
3600W
4000W
4300W
　
　
　
90.0
　
700W
1000W
1500W
2000W
2500W
2800W
3200W
3600W
4000W
4300W
　
　
　
　
100.0
　
800W
1500W
1900W
2000W
2800W
3000W
3400W
3600W
4200W
　
　
　
　
　
Power at 230V

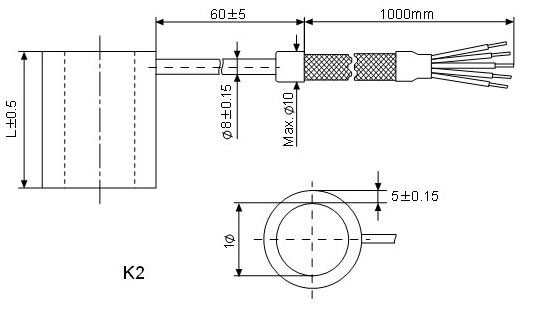

K1 and K2
Diameter
Length
mm
20
40
60
80
100
120
140
160
180
200
220
240
12
　
250W
300W
400W
500W
600W
650W
700W
750W
800W
900W
1000W
13
　
250W
300W
400W
500W
600W
650W
700W
750W
800W
900W
1000W
14
150W
250W
350W
450W
550W
650W
700W
750W
800W
850W
950W
1050W
15
150W
250W
350W
450W
550W
650W
700W
750W
800W
850W
950W
1050W
16
150W
250W
350W
450W
550W
650W
700W
750W
800W
850W
950W
1050W
18
150W
300W
450W
550W
650W
750W
800W
850W
900W
950W
1000W
1050W
19
150W
300W
450W
550W
650W
750W
800W
850W
900W
950W
1000W
1050W
20
150W
300W
450W
550W
650W
750W
800W
850W
900W
950W
1000W
1050W
22
200W
350W
500W
600W
700W
800W
850W
900W
950W
1000W
1050W
1100W
Power at 230V

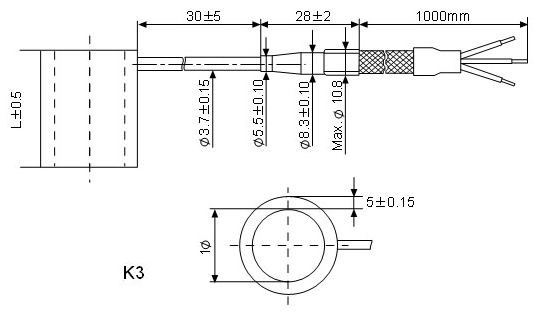

K3 and K4

Diameter
Length
mm
20
40
60
80
100
120
140
160
180
200
220
240
12
　
250W
300W
400W
500W
600W
650W
700W
750W
800W
900W
1000W
13
　
250W
300W
400W
500W
600W
650W
700W
750W
800W
900W
1000W
14
150W
250W
350W
450W
550W
650W
700W
750W
800W
850W
950W
1050W
15
150W
250W
350W
450W
550W
650W
700W
750W
800W
850W
950W
1050W
16
150W
250W
350W
450W
550W
650W
700W
750W
800W
850W
950W
1050W
18
150W
300W
450W
550W
650W
750W
800W
850W
900W
950W
1000W
1050W
19
150W
300W
450W
550W
650W
750W
800W
850W
900W
950W
1000W
1050W
20
150W
300W
450W
550W
650W
750W
800W
850W
900W
950W
1000W
1050W
22
200W
350W
500W
600W
700W
800W
850W
900W
950W
1000W
1050W
1100W
Power at 230V

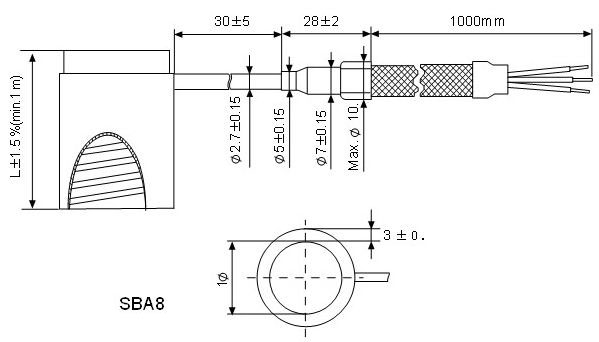

Sleeve: 1.7mmX3.5mm
Diameter
Length
mm
20
40
60
80
100
120
140
160
180
200
220
240
12
　
200W
300W
350W
400W
500W
550W
600W
　
　
　
　
13
　
200W
300W
350W
400W
500W
550W
600W
　
　
　
　
14
120W
250W
300W
400W
450W
500W
600W
　
　
　
　
　
15
120W
250W
300W
400W
500W
600W
　
　
　
　
　
　
16
120W
250W
300W
400W
500W
600W
　
　
　
　
　
　
18
150W
300W
350W
400W
500W
600W
　
　
　
　
　
　
19
150W
300W
400W
450W
500W
600W
　
　
　
　
　
　
20
150W
300W
400W
450W
500W
600W
　
　
　
　
　
　
22
200W
300W
400W
450W
500W
600W
　
　
　
　
　
　
Power at 230V




Heaters for Hot Runner System


-       Coil Heater
-       Flexible Heater
-       Unformed Heating Bar: NiCr Rod for coil heater
-       Probe Thermocuple

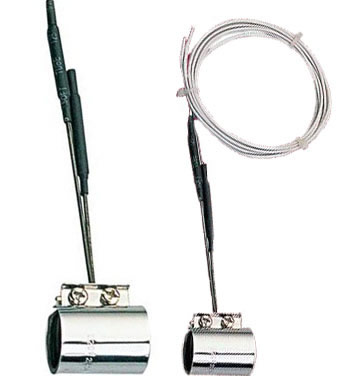

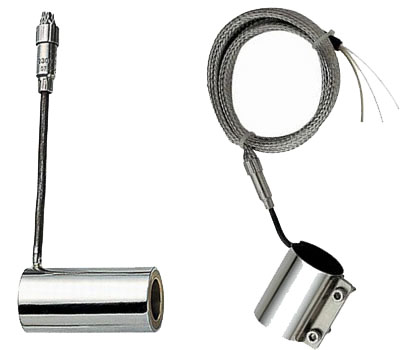

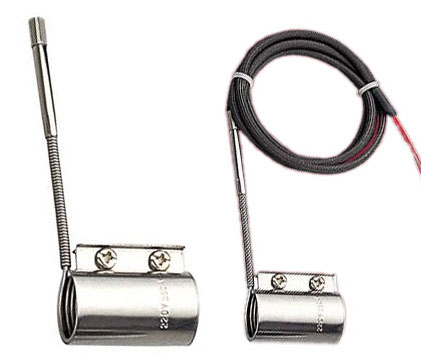

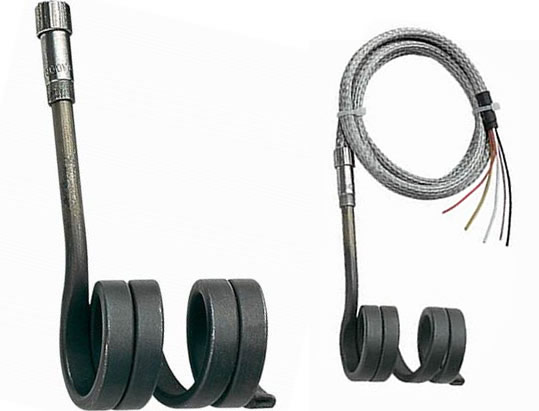

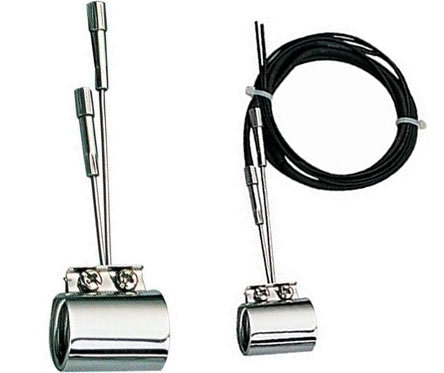

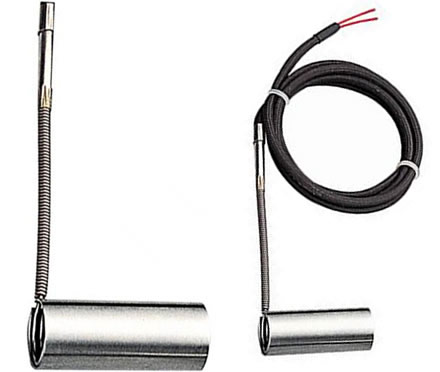

Coil Heater

Application

Hot runner systems
Plastic industry
Packing machine
Foundry industry
Medical equipment

Standard Dimensions
Square Cross Section: 3mmx3mm, 3.3mmx3.3mm, 3.4mmx3.4mm, 3.5mmx3.5mm, 4mmx4mm
Rectangular Cross Section: 4mmx2mm, 4.2mmx2.2mm
Round Cross Section:1.6mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm, 5mm

Inner Diameter of Coil: ø10, ø12, ø16, ø18, ø20, ø25, ø30, ø35, ø38
Length of Coil: 40mm, 60mm, 80mm, 100mm, 120mm, 150mm, 180mm, 200mm
Length of lead: 500mm, 1000mm, 1200mm, 1500mm, 2000mm
Rated Voltage: 220V, 230V
Wattage: 200W -1500W
Thermocouple: can be built with or without J, K thermocouple


When you order, please supply us:
Cross section
ID, OD and Length of the coil
Thermocouple Type
Termination and leads condition
Wattage and Voltage
Sketch or sample for custom's design

Please find the detailes as below for reference.

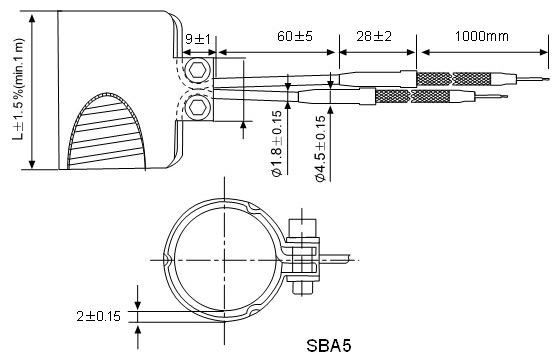

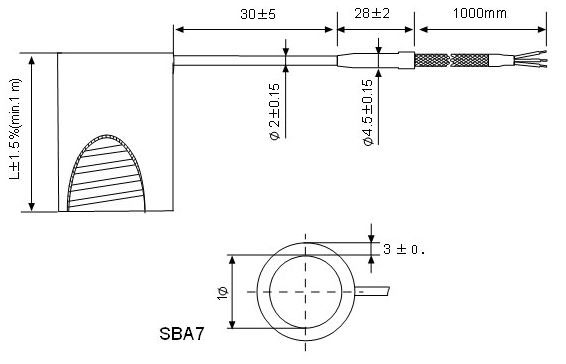

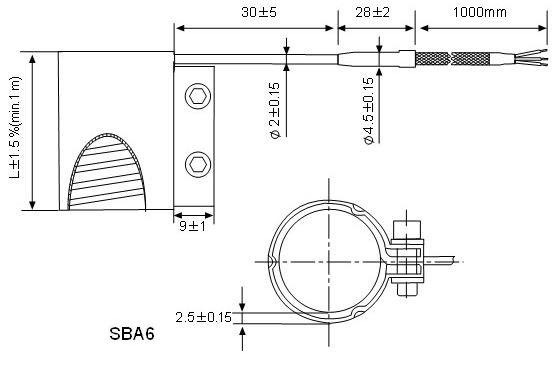

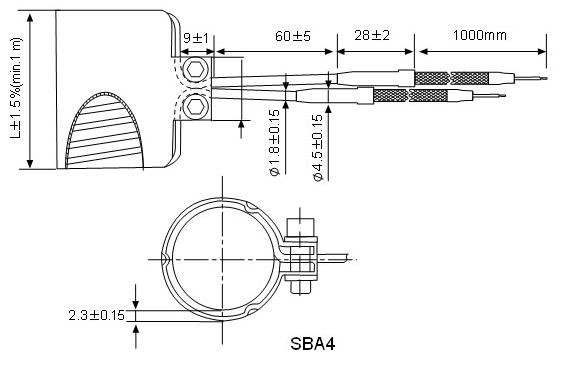

Sleeve: 2.0mm aX2.0mm a
Diameter
Length
mm
20
40
60
80
100
120
140
160
180
200
220
240

12
　
200W
300W
350W
　
　
　
　
　
　
　
　

13
　
200W
300W
350W
　
　
　
　
　
　
　
　

14
120W
250W
350W
　
　
　
　
　
　
　
　
　

15
120W
250W
350W
　
　
　
　
　
　
　
　
　

16
120W
300W
350W
　
　
　
　
　
　
　
　
　

18
150W
300W
350W
　
　
　
　
　
　
　
　
　

19
150W
300W
350W
　
　
　
　
　
　
　
　
　

20
150W
300W
350W
　
　
　
　
　
　
　
　
　

22
200W
350W
　
　
　
　
　
　
　
　
　
　

Power at 230V

Sleeve: 2.0mm bX2.0mm b
Diameter
Length
mm
20
40
60
80
100
120
140
160
180
200
220
240
12
　
200W
300W
350W
　
　
　
　
　
　
　
　
13
　
200W
300W
350W
　
　
　
　
　
　
　
　
14
120W
250W
350W
　
　
　
　
　
　
　
　
　
15
120W
250W
350W
　
　
　
　
　
　
　
　
　
16
120W
300W
350W
　
　
　
　
　
　
　
　
　
18
150W
300W
350W
　
　
　
　
　
　
　
　
　
19
150W
300W
350W
　
　
　
　
　
　
　
　
　
20
150W
300W
350W
　
　
　
　
　
　
　
　
　
22
200W
350W
　
　
　
　
　
　
　
　
　
　
Power at 230V

Sleeve 1.5mmX2.1mm

Diameter
Length
  mm
30
40
50
60
70
80
90
100
　
　
　
　
12
150W
200W
250W
300W
350W
400W
450W
500W
550W
600W
650W
700W
13
150W
200W
250W
300W
350W
400W
450W
500W
550W
600W
650W
700W
14
150W
250W
300W
350W
400W
450W
500W
550W
600W
650W
700W
750W
15
200W
250W
300W
350W
400W
450W
550W
550W
600W
650W
700W
750W
16
200W
300W
350W
400W
450W
500W
550W
600W
650W
700W
750W
800W
18
250W
300W
350W
450W
500W
550W
600W
650W
700W
750W
800W
　
19
250W
300W
350W
450W
500W
550W
600W
650W
700W
750W
800W
　
20
250W
300W
400W
450W
500W
550W
600W
650W
700W
750W
800W
　
22
250W
300W
400W
450W
500W
550W
600W
650W
700W
750W
800W
　
Power at 230V

Sleeve 1.8mmX1.8mm
Diameter
Length
mm
30
40
50
60
70
80
90
100
　
　
　
　
12
150W
200W
250W
300W
350W
400W
450W
500W
550W
600W
650W
700W
13
150W
200W
250W
300W
350W
400W
450W
500W
550W
600W
650W
700W
14
150W
250W
300W
350W
400W
450W
500W
550W
600W
650W
700W
750W
15
200W
250W
300W
350W
400W
450W
550W
550W
600W
650W
700W
750W
16
200W
300W
350W
400W
450W
500W
550W
600W
650W
700W
750W
800W
18
250W
300W
350W
450W
500W
550W
600W
650W
700W
750W
800W
　
19
250W
300W
350W
450W
500W
550W
600W
650W
700W
750W
800W
　
20
250W
300W
400W
450W
500W
550W
600W
650W
700W
750W
800W
　
22
250W
300W
400W
450W
500W
550W
600W
650W
700W
750W
800W
　
Power at 230V


E-mail: hoteksales@163169.net
Copyright © 2000-2030 Hotek Alliance Limited
