Silicon Carbide

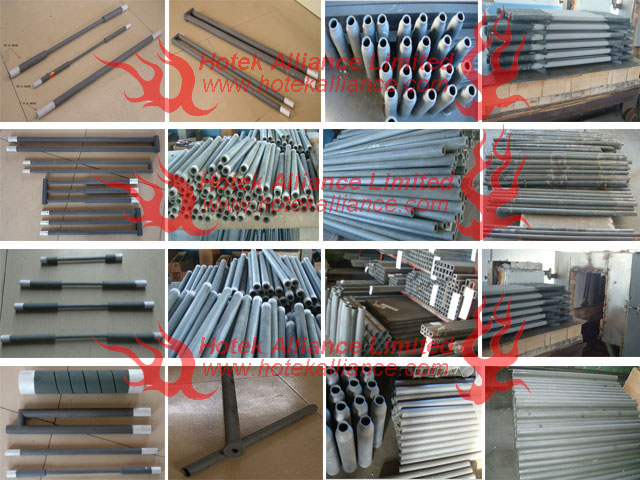

Silicon carbide heating elements are made from fine green silicon carbide. This non-metal heating element is recrystallized at 2200℃.

Features

High working temperature, energy-saving, rapid heating, anti-oxidization, good service life, rare deformation, easy installation and maintenance.

Application

Electronics, glass, national defense, metallurgy, ceramics, light chemical industry, science research, and machinery, etc.

More uses are as below:

Ceramic Industry: dinnerware, whiteware, pottery, calcining, ferrites, titanates, steatites, electrical porcelain, refractories, grinding wheels, etc.

Metallurgy: heat-treating, hardening, forging, annealing, sintering, deoxidizing, brazing.

Glass industry: melting, refining, holding, etc.

When order, please supply:

Shape, dimensions, quantity and working resistance.

If you need special spec, please provide: working environment, working temperature, and method of adjusting voltage and wire terminal.

Когда тем, пожалуйста, сообщите нам: форма, размеры, количество и рабочие сопротивления. Если вам нужна специальная спецификация, просьба сообщить: условия работы, рабочие температуры, и метод регулировки напряжения и провода терминала.

Dumbbell Ends Type

L: overall length l: length of hot zone

D: diameter of cold end d: diameter of hot zone

m: length of cold end n: length of the zone sprayed aluminium

GD/SD Type

L: overall length l: length of hot zone d: diameter

m: length of cold end n: length of the zone sprayed aluminium

Double of Hot Zones

L: overall length l: length of hot zone

d: diameter m1: length of the cold end in the middle

m: length of cold end n: length of the zone sprayed aluminium

U Type

m: length of cold end n: length of the zone sprayed aluminium

l: length of hot zone d: diameter E: center distance

Gun Type

m: length of cold end n: length of the zone sprayed aluminium

l: length of hot zone d: diameter E: center distance F: length of the jut

W Type

L: overall length L1: length of hot zone L2:length of cold end

L3: length of sprayed aluminium zone L4: distance between the hole to end

D1:diameter of hot zone D2: diameter of crossbeam D3: diameter of the hole

F: length of crossbeam H1: center distance H2: width of outer cold ends

SGR/Spiral Type

L: overall length l: length of hot zone d: diameter

m: length of cold end n: length of the zone sprayed aluminium

Troughlike Type

L: length of hot zone m: length of cold end d: diameter

Recrystallized Thermocouple Protection Tube

L: Length of hot zone D: Outer Diameter D1: Inner Diameter

Density

＞3.02 g/m³

Porosity

＜0.1%

Bending Strength

250MPa @20℃

280MPa @1200℃

Modulus of Elasticity

330GPa @20℃

300GPa @1200℃

Thermal Conductivity

45W/M.K @1200℃

Thermal Expansion

4.5K^-1×10^-6

Rigidity

13

Acid-Alkalescence Resistance

Excellent

Work Temp.

1380℃

Clamps & Connection Belts

Material of Clamps: spring steel or stainless steel

Material of Connection Belts: aluminum foil belts, aluminium wire braided belts

Dimensions & Resistance Range of SiC Heating Elements

Diameter	Hot Zone Length	Cold Zone Length	Overall Length	Resistance Range
8	100-300	60-200	240-700	2.1-7.2
12	100-400	100-350	300-1100	0.8-6.0
14	100-500	150-350	400-1200	0.8-5.6
16	200-600	200-350	600-1300	0.8-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-5.0
25	200-1200	250-700	700-2600	0.6-4.5
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.4
40	500-2700	250-800	1000-4300	0.5-3.0
45	500-3000	250-750	1000-4500	0.3-2.5
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-2.5

Molybdenum Disilicide

Molybdenum disilicide heating elements (M_oS_i2) are made from S_iO_2.When it is burned in oxide atmosphere, a layer of S_iO₂ film comes onto the surface of the element. Even in oxide atmosphere, the element cannot be oxidized and can work from 1300℃ to 1800℃. You can use new elements and old elements at the same time. Parallel circuit or series circuit are both ok, and do not need to consider the matching of resistance. The elements provide a reliable heat source.

Application

Glass industry, metallurgy, ceramic refractory, pottery, heattreatment, furnace manufacture, electronics industry, magnetism material, military industry, scientific research, laboratory, universities, etc. It is an ideal element that used in sintering industry.

ф6/12mm 1800℃ Resistance/Voltage/Power

Lu\Le	150	180	200	250	300	350	400	450	500	550	600
150	868	994	1092	1330	1568	1806
	0.044	0.051	0.056	0.068	0.068	0.092
	6.2	7.1	7.8	9.5	11.2	12.9
200	882	1022	1120	1358	1582	1820	2058
	0.045	0.052	0.057	0.069	0.081	0.093	1.105
	6.3	7.3	8	9.7	11.3	13	14.7
250	924	1064	1162	1386	1624	1862	2100	2338	2562
	0.047	0.054	0.059	0.071	0.083	0.095	0.107	0.119	0.131
	6.6	7.6	8.3	9.9	11.6	13.3	15	16.7	18.3
270	924	1078	1162	1386	1624	1826	2100	2338	2562
	0.047	0.055	0.059	0.071	0.083	0.095	0.107	0.119	0.131
	6.6	7.7	8.3	9.9	11.6	13.3	15	16.7	18.3
300	938	1092	1176	1414	1666	1876	2114	2352	2576	2828	3052
	0.048	0.056	0.06	0.072	0.085	0.096	0.108	0.12	0.132	0.144	0.156
	6.7	7.8	8.4	10.1	11.9	13.4	15.1	16.8	18.4	20.2	21.8
350	980	1120	1218	1456	1680	1919	2156	2394	2632	2856	3094
	0.05	0.057	0.062	0.074	0.086	0.098	0.11	0.122	0.134	0.146	0.158
	7	8	8.7	10.4	12	13.7	15.4	17.1	18.8	20.4	22.1
400	1022	1162	1260	1480	1722	1960	2198	2436	2660	2898	3136
	0.052	0.059	0.064	0.076	0.088	0.1	0.112	0.124	0.136	0.148	0.16
	7.3	8.3	9	10.6	12.3	14	15.7	17.4	19	20.7	22.4
450		1176	1274	1512	1750	1974	2212	2450	2688	2926	3150
		0.06	0.065	0.077	0.089	0.101	0.113	0.125	0.137	0.149	0.161
		8.4	9.1	10.8	12.5	14.1	15.8	17.5	19.2	20.9	22.5
500				1554	1778	2016	2254	2492	2730	2954	3192
				0.079	0.091	0.103	0.115	0.127	0.139	0.151	0.163
				11.1	12.7	14.4	16.1	17.8	19.5	21.1	22.8
550					1820	2058	2296	2534	2744	2982	3220
					0.093	0.105	0.117	0.129	0.14	0.152	0.164
					13	14.7	16.4	18.1	19.6	21.3	23
600					1848	2072	2310	2548	2786	3024	3248
					0.094	0.106	0.118	0.13	0.142	0.154	0.166
					13.2	14.8	16.5	18.2	19.9	21.6	23.2
650	Power: W Resistance:Ohm Volt: V						2352	2590	2828	3052	3290
							0.12	0.132	0.144	0.156	0.168
							16.8	18.5	20.2	21.8	23.5
700	Element Temp.: 1500℃ Current: 140A Surface Load: 12.5W/cm²							2604	2842	3108	3318
								0.133	0.145	0.159	0.169
								18.6	20.3	22.2	23.7

ф9/18mm 1800℃ Resistance/Voltage/Power

Lu\Le	150	180	200	250	300	350	400	450	500	550	600	650	700	750	800
250	1350	1550	1675	2025	2375	2725	3050	3400	3750	4100	4425	4775	5125	5475	5800
	0.022	0.025	0.027	0.032	0.038	0.044	0.049	0.054	0.06	0.066	0.071	0.076	0.082	0.088	0.093
	5.4	6.2	6.7	8.1	9.5	10.9	12.2	13.6	15	16.4	17.7	19.1	20.5	21.9	23.2
300	1375	1600	1725	2075	2475	2750	3100	3450	3800	4125	4475	4825	5175	5500	5850
	0.022	0.026	0.028	0.033	0.039	0.044	0.05	0.055	0.061	0.066	0.072	0.077	0.083	0.088	0.094
	5.5	6.4	6.9	8.3	9.7	11	12.4	13.8	15.2	16.5	17.9	19.3	20.7	22	23.4
350	1425	1625	1775	2125	2450	2800	3150	3500	3825	4175	4525	4875	5200	5550	5900
	0.023	0.026	0.028	0.034	0.039	0.045	0.05	0.056	0.061	0.067	0.072	0.078	0.083	0.089	0.094
	5.7	6.5	7.1	8.5	9.8	11.2	12.6	14	15.3	16.7	18.1	19.5	20.8	22.2	23.6
400	1475	1675	1825	2150	2500	2850	3200	3525	3875	4225	4575	4900	5250	5600	5950
	0.024	0.027	0.029	0.034	0.04	0.046	0.051	0.056	0.062	0.068	0.073	0.078	0.084	0.09	0.095
	5.9	6.7	7.3	8.6	10	11.4	12.8	14.1	15.5	16.9	18.3	19.6	21	22.4	23.8
450		1725	1850	2200	2550	2900	3225	3575	3925	4275	4600	4950	5300	5650	5957
		0.028	0.03	0.035	0.04	0.046	0.052	0.057	0.063	0.068	0.074	0.079	0.085	0.09	0.096
		6.9	7.4	8.8	10.2	11.6	12.9	14.3	15.7	17.1	18.4	19.8	21.2	22.6	23.9
500			1900	2250	2600	2925	3275	3625	3975	4300	4650	5000	5350	5675	6025
			0.03	0.036	0.042	0.047	0.052	0.058	0.064	0.069	0.074	0.081	0.086	0.091	0.096
			7.6	9	10.4	11.7	13.1	14.5	15.9	17.2	18.6	20	21.4	22.7	24.1
550				2300	2625	2975	3325	3675	4000	4350	4700	5050	5375	5725	6075
				0.037	0.042	0.048	0.053	0.059	0.064	0.07	0.075	0.081	0.086	0.092	0.097
				9.2	10.5	11.9	13..3	14.7	16	17.4	18.8	20.2	21.5	22.9	24.3
600				2325	2675	3025	3375	3700	4050	4400	4750	5075	5425	5775	6125
				0.037	0.043	0.048	0.054	0.059	0.065	0.071	0.076	0.081	0.087	0.092	0.098
				9.3	10.7	12.1	13.5	14.8	16.2	17.6	19	20.3	21.7	23.1	24.5
650					2725	3075	3400	3750	4100	4450	4775	5125	5475	5825	6150
					0.044	0.049	0.054	0.06	0.066	0.071	0.076	0.082	0.088	0.093	0.098
					10.9	12.3	13.6	15	16.1	17.8	19.1	20.5	21.9	23.3	24.6
700					2775	3100	3450	3800	4150	4475	4825	5175	5525	5850	6200
					0.044	0.05	0.055	0.061	0.066	0.072	0.077	0.083	0.088	0.094	0.099
					11.1	12.4	14.8	15.2	16.6	17.9	16.3	20.7	22.1	23.4	24.8
750	Power: W Resistance: Ohm Volt: V					3150	3500	3850	4175	4525	4875	5225	5550	5900	6250
						0.05	0.056	0.062	0.067	0.072	0.078	0.084	0.089	0.094	0.1
						12.6	14	15.4	16.7	18.1	19.5	20.9	22.2	23.6	25
800	Element Temp.: 1500℃ Current: 250A Surface Load: 12.2W/cm²					3200	3550	3875	4225	4575	4925	5250	5600	5950	6300
						0.051	0.056	0.062	0.068	0.073	0.079	0.084	0.09	0.095	0.101
						12.8	14.2	15.5	16.9	18.3	19.7	21	22.4	23.8	25.2

MoSi₂ heater,MoSi₂ heizelemente, MoSi₂ heizleiter

二珪化モリブデン発熱体,MoSi₂ Нагревательные элементы

Metal Alloys in Wire/Strip/Rod

- Wire in reel

- Bundle Rods

- Coil Elements

- Folded Ribbon Elements

Our factory has the advanced technology of melting, rolling, forging, drawing, heat treatment and appearance finished. FeCrAl alloy, Nickel Chrome wire and welding material are sold well in Europe, America, Australia and Africa.

Feature

Stable performance, can stand high surface load, small specific gravity, stable co-efficiency, max. work at 1400°C

Application

Metallurgy, chemical, machanical, glass, welding material, enamel and household appliances industry.

NiChrome Alloy

Advantages

Anti-oxidization in high temperature atmosphere, high strength, non-inteneration. When work continiously, it does not extend and has no distortion. Among the alloys, Cr20Ni80 alloy is widely used for heating elements.

FeCrAl Alloy

Features

Anti-oxidization, anti-sulfur, anti-cementite, small specific gravity, high surface load, high resistivity, high service temperature, long life-span. They are also used in heating elements making.

Supply Condition

Cold-drawn wires is delivered after annealing and pickling.

Coil elements is delivered after acid picking or in oxidizing colour.

Performance of NiCr Alloy & NiCrFe Alloy

Performance

Cr20Ni80

Cr30Ni70

Cr15Ni60

Cr20Ni35

Cr20Ni30

Composition

Ni

Rest

Rest

55.0-61.0

34.0-37.0

30.0-34.0

Cr

20.0-23.0

28.0-31.0

15.0-18.0

18.0-21.0

18.0-21.0

Fe

≤1.0

≤1.0

Balance

Balance

Balance

Max. Work Temp. ℃

1200

1250

1150

1100

1100

Resistivity μΩ.m @ 20℃

1.09

1.18

1.12

1

1.04

Density    g/cm³

8.4

8.1

8.2

7.9

7.9

Thermal Conductivity KJ/m•h•℃

60.3

45.2

45.2

43.8

43.8

Linear Expansion Coefficient α×10^-6/℃

18

17

17

19

19

Melting Point     ℃

1400

1380

1390

1390

1390

Prolong            %

>20

>20

>20

>20

>20

Micrographic Structure

Austenite

Austenite

Austenite

Austenite

Austenite

Magnetic

None

None

None

Weak

Weak

Dimensions & Characteristics of NiCr & NiCrFe

Diameter

mm

Cross Section

mm²

Surface Area

　

cm²/m　

Cr20Ni80,Cr30Ni70,Cr15Ni60

Cr20Ni30,Cr20Ni35

Resistivity

μΩ.m, 20℃ 1.09~1.20±0.05

Resistivity

μΩ.m, 20℃ 1.04~1.06±0.05

Ω/m

@20℃

m/kg

kg/m

Ω/m

@20℃

m/kg

kg/m

0.1

0.0078

3.14

143.9

15578

0.0000641

132.4

16228

0.0000616

0.12

0.0113

3.77

99.9

10753

0.0000929

91.96

11202

0.0000892

0.15

0.0177

4.71

63.94

6865

0.0001456

58.85

7151.5

0.00014

0.17

0.0227

5.34

9.78

5353

0.0001868

45.82

5576.3

0.000179

0.19

0.0284

5.97

39.85

4278

0.0002337

36.86

4457.1

0.000224

0.21

0.0346

6.6

29.72

3198

0.0003126

27.36

3331.1

0.0003

0.25

0.0491

7.85

22.86

2475

0.000404

21.19

2578.1

0.000388

0.27

0.0573

8.48

18.35

1973

0.0005068

16.89

2054.9

0.000487

0.29

0.0661

9.11

15.98

1718

0.000582

14.71

1790.7

0.000558

0.31

0.0755

9.74

14.05

1511

0.0006618

12.93

1574.4

0.000635

0.35

0.0962

11

11.74

1263

0.0007917

10.81

1315.8

0.00076

0.4

0.1257

12.57

8.992

966.6

0.001035

8.276

1007

0.000993

0.45

0.159

14.14

7.105

764.2

0.001309

6.539

796.1

0.00126

0.5

0.1963

15.71

5.755

619

0.001616

5.297

644.8

0.00155

0.6

0.283

18.85

4.103

429.4

0.002329

3.749

447.3

0.00224

0.7

0.385

22

3.014

315.6

0.003169

2.754

328.8

0.00304

0.8

0.503

25.1

2.308

241.6

0.004139

2.109

251.7

0.00397

0.9

0.636

28.3

1.823

191

0.005236

1.666

199

0.00503

1

0.785

31.4

1.477

154.8

0.00646

1.35

161.3

0.0062

1.2

1.131

37.7

0.999

107.4

0.009311

0.9196

111.9

0.00894

1.4

1.539

44

0.734

78.95

0.01267

0.6756

82.25

0.01216

1.6

3.01

50.3

0.562

60.45

0.01654

0.5173

62.98

0.01588

1.8

2.54

56.5

0.444

47.84

0.0209

0.4087

49.84

0.02006

2

3.14

62.8

0.36

38.7

0.02584

0.331

40.31

0.02408

2.2

3.8

69.1

0.297

31.98

0.03127

0.2736

33.31

0.03002

2.5

4.91

78.5

0.2053

22.89

0.04369

0.2109

23.84

0.04195

2.8

6.16

88

0.184

19.73

0.05068

0.1689

20.55

0.04866

3

7.07

94.2

0.16

17.19

0.05817

0.1471

17.9

0.05587

3.5

9.62

110

0.117

12.63

0.07918

0.1081

13.16

0.07599

4

12.57

125.7

0.09

9.667

0.1034

0.08276

10.07

0.0993

4.5

15.9

141.4

0.071

7.642

0.1309

0.06539

7.961

0.1256

5

19.63

157.1

0.056

6.19

0.1616

0.05297

6.448

0.1551

5.5

23.8

172.8

0.049

5.105

0.1959

0.04462

5.319

0.188

6

28.3

188.5

0.041

4.294

0.2329

0.03749

4.473

0.2236

6.5

33.2

204

0.035

3.66

0.2732

0.03194

3.813

0.2623

7

38.5

220

0.03

3.156

0.3169

0.02754

3.288

0.3041

Performance of FeCrAl Alloy

Performance

1Cr13Al4

0Cr25Al5

0Cr21Al6

0Cr23Al5

0Cr21Al4

0Cr21Al6Nb

0Cr27Al7Mo₂

Composition

Cr

12.0-15.0

23.0-26.0

19.0-22.0

22.5-24.5

18.0-21.0

21.0-23.0

26.5-27.8

Al

4.0-6.0

4.5-6.5

5.0-7.0

4.2-5.0

3.0-4.2

5.0-7.0

6.0-7.0

Re

Opportune

Opportune

Opportune

Opportune

Opportune

Opportune

Opportune

Fe

Balance

Balance

Balance

Balance

Balance

Balance

Balance

　

　

　

　

　

　

Nb0.5

Mo1.8-2.2

Max. Work Temp. ℃

650

1250

1250

1250

1100

1350

1400

Resistivity μΩ.m @ 20℃

1.25

1.42

1.42

1.35

1.23

1.45

1.53

Density    g/cm³

7.4

7.1

7.16

7.25

7.35

7.1

7.1

Thermal Conductivity

KJ/m•h•℃

52.7

46.1

63.2

60.2

46.9

46.1

45.2

Linear Expansion Coefficient

            α×10^-6/℃

15.4

16

14.7

15

13.5

16

16

Melting Point     ℃

1450

1500

1500

1500

1500

1510

1520

Tensile Strength   Mpa

580-680

630-780

630-780

630-780

600-700

650-800

680-830

Prolong         %

>16

>12

>12

>12

>12

>12

>10

Variation of cross section %

65-75

60-75

65-75

65-75

65-75

65-75

65-75

Repeat Bending     F/R

>5

>5

>5

>5

>5

>5

>5

Hardness       H.B.

200-260

200-260

200-260

200-260

200-260

200-260

200-260

Micrographic Structure

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Dimensions & Characteristics of FeCrAl Alloy Ⅰ

Dia

mm

Cross Section

mm²

Surface Area

cm²/m

1Cr13Al4

0Cr25Al5

0Cr21Al6

0Cr23Al5

Resistivity

Resistivity

Resistivity

Resistivity

μΩ.m,20℃ 1.25±0.08

μΩ.m,20℃ 1.42±0.07

μΩ.m,20℃1.42±0.07

μΩ.m,20℃ 1.35±0.06

Ω/m @20℃

m/kg

kg/m

Ω/m @20℃

m/kg

kg/m

Ω/m @20℃

m/kg

kg/m

Ω/m @20℃

m/kg

kg/m

0.1

0.0078

3.14

159.2

17206

0.0000581

180.6

17933

0.0000558

180.6

17905

0.0000558

173.1

17683

0.0000566

0.12

0.0113

3.77

110.5

11949

0.0000836

125.6

12453

0.0000803
,

125.6

12360

0.0000809

119.5

12206

0.0000819

0.15

0.0177

4.71

70.7

7647

0.000131

80.4

7970

0.000125

80.4

7891

0.000128

76.4

7793

0.000128

0.17

0.0227

5.34

55.1

5954

0.000168

62.6

6205

0.000161

62.6

6153

0.000163

59.5

6076

0.000165

0.19

0.0284

5.97

44.1

4766

0.00021

50.1

4959

0.000201

50.1

4918

0.000203

47.5

4854

0.00206

0.21

0.0346

6.6

36.1

3901

0.000256

41

4066

0.000246

41

4037

0.000248

35.5

3986

0.000276

0.25

0.0491

7.85

25.5

2753

0.000363

28.9

2870

0.000346

28.9

2844

0.000352

27.5

2809

0.000356

0.27

0.0573

8.48

21.8

2360

0.000424

24.8

2460

0.000407

24.8

2437

0.00041

21.9

2407

0.000447

0.29

0.0661

9.11

18.9

2046

0.000489

21.5

2132

0.000469

21.5

2113

0.000473

19.1

2087

0.000513

0.31

0.0755

9.74

16.6

1790

0.000559

18.8

1866

0.000536

18.8

1849

0.000541

16.8

1827

0.000583

0.35

0.0962

11

13

1405

0.000712

14.8

1464

0.000683

14.8

1452

0.000689

14

1434

0.000697

0.4

0.1257

12.57

9.95

1075

0.00093

11.3

1121

0.000892

11.3

1111

0.0009

10.7

1097

0.000911

0.45

0.159

14.14

7.86

850

0.001177

8.93

886

0.001129

8.93

878

0.001138

8.49

867

0.00115

0.5

0.1963

15.71

6.37

688

0.001453

7.23

717

0.001394

7.23

711

0.001406

6.88

703

0.00142

0.6

0.283

18.85

4.42

480

0.002092

5.02

498

0.00201

5.02

494

0.002026

4.77

496

0.00205

0.7

0.385

22

3.25

351

0.002848

3.69

366

0.00273

3.69

362

0.002751

3.51

358

0.00279

0.8

0.503

25.1

2.49

269

0.00372

2.83

280

0.00357

2.83

278

0.003601

2.69

274

0.00365

0.9

0.636

28.3

1.96

212

0.004708

2.23

221

0.00452

2.23

220

0.004554

2.12

217

0.00461

1

0.785

31.4

1.59

172

0.005812

1.808

179.5

0.00557

1.808

177.9

0.00562

1.72

176

0.00569

1.2

1.131

37.7

1.11

119

0.008369

1.256

124.5

0.00803

1.256

123.5

0.008098

1.194

122

0.0082

1.4

1.539

44

0.812

87.8

0.001139

0.922

91.5

0.01093

0.922

90.8

0.01102

0.877

89.6

0.01116

1.6

3.01

50.3

0.622

67.2

0.01488

0.706

70.1

0.01427

0.706

69.5

0.01439

0.672

68.6

0.01457

1.8

2.54

56.5

0.491

53.1

0.01883

0.558

55.5

0.01803

0.558

54.9

0.01819

0.532

54.3

0.01842

2

3.14

62.8

0.398

43

0.02325

0.452

44.8

0.0223

0.452

44.5

0.02248

0.43

43.9

0.02277

2.2

3.8

69.1

0.329

35.5

0.02813

0.374

37

0.027

0.374

36.8

0.0272

0.355

36.3

0.02755

2.5

4.91

78.5

0.255

27.5

0.03632

0.289

28.7

0.0349

0.289

28.4

0.03516

0.275

28.1

0.03849

2.8

6.16

88

0.203

21.9

0.04557

0.231

22.9

0.0437

0.231

22.7

0.04411

0.219

22.4

0.04466

3

7.07

94.2

0.1768

19.1

0.05231

0.201

19.92

0.0502

0.201

19.8

0.05062

0.191

19.5

0.05126

3.5

9.62

110

0.1299

14

0.0712

0.1476

14.64

0.0683

0.1476

14.5

0.06888

0.14

14.3

0.06975

4

12.57

125.7

0.0995

10.75

0.09299

0.113

11.21

0.0892

0.113

11.1

0.09

0.107

11

0.09113

4.5

15.9

141.4

0.0786

8.5

0.1177

0.0893

8.86

0.1129

0.0893

8.78

0.1138

0.0849

8.67

0.1153

5

19.63

157.1

0.0637

6.88

0.1453

0.0723

7.17

0.1394

0.0723

7.11

0.1406

0.0688

7.03

0.1423

5.5

23.8

172.8

0.0526

5.69

0.1758

0.0598

5.92

0.169

0.0598

5.87

0.1704

0.0568

5.8

0.1726

6

28.3

188.5

0.0442

4.78

0.2092
<, TD vAlign=bottom width=35>
0.050, 2

4.98

0.201

0.0502

4.94

0.2026

0.0477

4.88

0.2052

6.5

33.2

204

0.0377

4.07

0.2456

0.0428

4.24

0.236

0.0428

4.21

0.2377

0.0407

4.15

0.2407

7

38.5

220

0.0325

3.51

0.2848

0.0369

3.66

0.273

0.0369

3.63

0.2757

0.0351

3.58

0.2791

Dimensions & Characteristics of FeCrAl Alloy Ⅱ

Diameter

mm

Cross Section

mm²

Surface Area

cm²/m

0Cr21Al4

0Cr21Al6Nb

0Cr27Al7Mo₂

Resistivity

μΩ.m, 20℃ 1.23±0.06

Resistivity

μΩ.m, 20℃ 1.45±0.07

Resistivity

μΩ.m, 20℃ 1.53±0.07

Ω/m @20℃

m/kg

kg/m

Ω/m @20℃

m/kg

kg/m

Ω/m @20℃

m/kg

kg/m

0.1

0.0078

3.14

156.6

17452

0.0000573

184.6

17933

0.0000558

194.8

17933

0.0000558

0.12

0.0113

3.77

108.8

12033

0.0000831

128.2

12453

0.0000803

135.3

12453

0.0000803

0.15

0.0177

4.71

69.6

7692

0.00013

82.1

7970

0.000125

80.6

7970

0.000125

0.17

0.0227

5.34

54.2

5988

0.000167

63.9

6205

0.000161

67.4

6205

0.000161

0.19

0.0284

5.97

43.4

4785

0.000209

51.1

4968

0.000201

54

4968

0.000201

0.21

0.0346

6.6

35.5

3937

0.000254

41.9

4066

0.000246

44.2

4066

0.000246

0.25

0.0491

7.85

25.1

2770

0.000361

29.5

2870

0.000349

31.2

2870

0.000349

0.27

0.0573

8.48

21.5

2375

0.000421

25

2460

0.000407

26.7

2460

0.000407

0.29

0.0661

9.11

18.6

2058

0.000486

22

2131

0.000469

23.2

2132

0.000469

0.31

0.0755

9.74

16.3

1802

0.000555

19.2

1866

0.000536

20.3

1866

0.000536

0.35

0.0962

11

12.8

1414

0.000707

15.1

1464

0.000683

15.9

1464

0.000683

0.4

0.1257

12.57

9.79

1082

0.000924

11.54

1121

0.000892

12.19

1121

0.000892

0.45

0.159

14.14

7.73

855

0.00117

9.12

886

0.001129

9.62

886

0.001129

0.5

0.1963

15.71

6.26

694

0.00144

7.38

717

0.001394

7.79

717

0.001394

0.6

0.283

18.85

4.35

480

0.00208

5.13

498

0.00201

5.41

498

0.00201

0.7

0.385

22

3.2

353

0.00283

3.77

366

0.00273

3.98

366

0.00273

0.8

0.503

25.1

2.45

270

0.003697

2.88

280

0.00357

3.04

280

0.00357

0.9

0.636

28.3

1.93

213

0.004675

2.28

221

0.00452

2.41

221

0.00452

1

0.785

31.4

1.57

173

0.00577

1.85

179.5

0.00557

1.95

179.5

0.00557

1.2

1.131

37.7

1.09

120

0.008313

1.282

124.5

0.00803

1.35

124.5

0.00803

1.4

1.539

44

0.799

88.4

0.01131

0.942

91.5

0.01093

0.994

91.5

0.01093

1.6

3.01

50.3

0.612

67.7

0.01477

0.721

70.1

0.01427

0.761

70.1

0.01427

1.8

2.54

56.5

0.483

53.56

0.01867

0.57

55.5

0.01803

0.601

55.5

0.01803

2

3.14

62.8

0.392

43.33

0.02308

0.462

44.8

0.0229

0.487

44.8

0.0229

2.2

3.8

69.1

0.324

35.8

0.02793

0.381

37

0.027

0.402

37

0.027

2.5

4.91

78.5

0.251

27.71

0.03609

0.295

28.7

0.0349

0.312

28.7

0.0349

2.8

6.16

88

0.2

22.08

0.04528

0.235

22.9

0.0437

0.248

22.9

0.0437

3

7.07

94.2

0.174

19.25

0.05196

0.205

19.92

0.052

0.216

19.92

0.052

3.5

9.62

110

0.1278

14.14

0.07071

0.151

14.64

0.0683

0.159

14.64

0.0683

4

12.57

125.7

0.0979

10.82

0.09239

0.1154

11.21

0.0892

0.1218

11.21

0.0892

4.5

15.9

141.4

0.0773

8.55

0.1169

0.0912

8.86

0.1129

0.0962

8.86

0.1129

5

19.63

157.1

0.0626

6.93

0.1443

0.0738

7.17

0.1394

0.0779

7.17

0.1394

5.5

23.8

172.8

0.0518

5.72

0.1749

0.061

5.92

0.169

0.0644

5.92

0.169

6

28.3

188.5

0.0435

4.81

0.208

0.0513

4.98

0.201

0.0541

4.98

0.201

6.5

33.2

204

0.0371

4.09

0.244

0.0437

4.24

0.236

0.0461

4.24

0.236

7

38.5

220

0.032

3.53

0.283

0.0377

3.66

0.273

0.0398

3.66

0.273

Dimensions & Characteristics of Ribbon Ⅰ

Dimensions & Characteristics of Ribbon Ⅱ

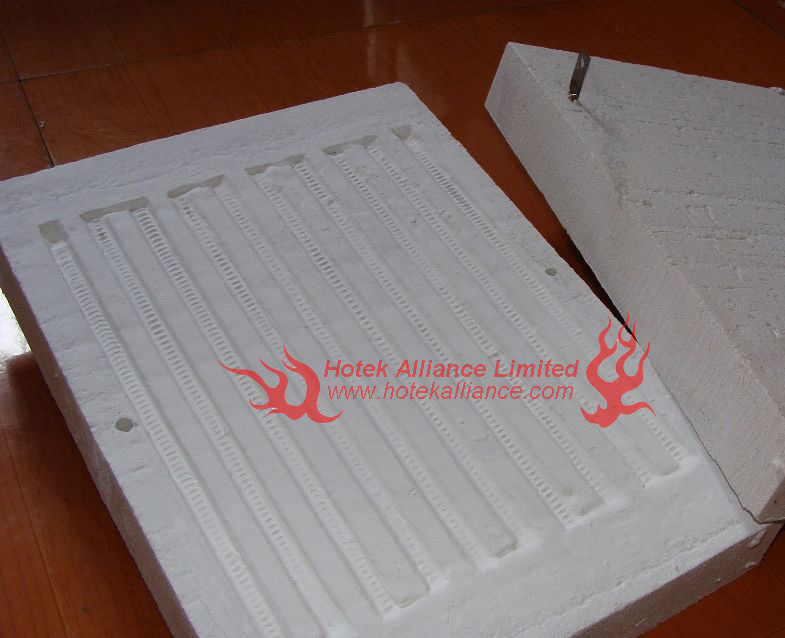

Radiant Tubes & Heaters

Ceramic Fibre

- Bulk Fibre

- Blankets

- Boards

- Modules

- Papers

- Textiles

- Mullite Crystal Fiber Needle-Punching Blankets

- Soluble Elements

- Coatings

Features

Low thermal conductivity, low heat storage, light weight,thermal shock resistant, excellent sound absorption, easy installation and maintenance, good chemical resistance.

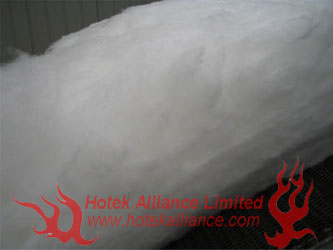

Spun Fibre

Work Temp: 1050℃ to 1600℃

Application

Raw material of fibre textile, fiber spraing, casting and coating materials.

Sealing, filling and insulation in high-temperature environment.

Technical Data

Spun Fibre

1050

1260

1260 (granulated wool)

Fiber diameter μm

2--4

Grain diameter: 6--20mm

Shot content

≤10

Spun Fibre

1050

1260

1400

Fiber diameter μm

3--6

Shot content

≤12

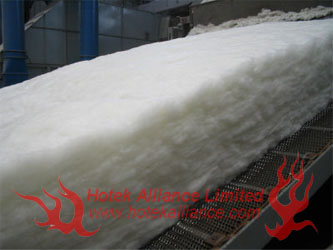

Blankets

Work Temp.: 1050℃ to 1600℃

Application

Material of fibre modules.

Linings, sealing and filling in high-temperature or oil environment.

Technical Data

Blankets

1050

1260

1400

Shrinkage on heating %

950℃×24h≤-3

1000℃×24h-3

1350℃×24h-3

Theoretical thermal conductivity

Average 200℃

0.045--0.060

0.052--0.070

w/m.k

128kg/ m³

Average400℃

0.085--0.110

0.095--0.120

Average600℃

0.152--0.20

0.164--0.210

Theoretical volume and density (kg/m³)

96/128

Dimensions mm

Other sizes on request.

7200×610×20

7200×610×20

3600×610×50

Boards

Work Temp.: 1050℃ , 1260℃

Application

Insulation for furnaces that used in metallurgy, ceramics and glass industries.

Hotface linings for furnaces.

Insulation of chambers for heating elements.

As insulation in building and high-temperature industries.

Technical Data

Boards

1050

1260

Shrinkage on heating %

950℃×24h≤-2.5

1000℃×24h≤-2

Theoretical Thermal Conductivity

Hot surface 600℃

0.080--0.085

0.086--0.087

w/m.k

Hot surface 800℃

0.112--0.116

0.106--0.108

Pressure-resistant strength≥ Mpa

0.5

0.6

Theoretical density kg/m³

220

300

Dimensions (mm)

Other sizes on request.

1200×600×25/50

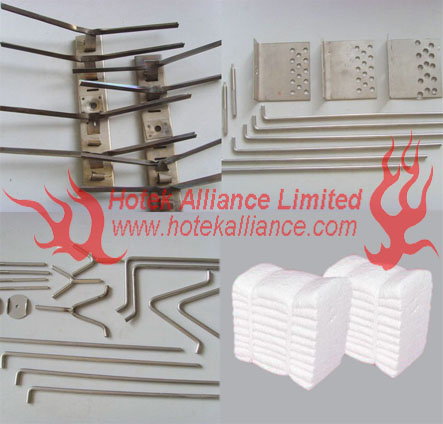

Modules

Work Temp.: 1050℃ to 1600℃

Application

Insulation in petrochemical, metallurgy, ceramic, glass, and building industries etc.

Technical Data

Modules

1260

1260

1400

Type

Common type

Standard type

Zirconia-containing type

Shrinkage on heating %

950℃×24h≤-3

1000℃×24h≤-3

1350×24h≤-3

Theoretical thermal conductivity

Average 200℃

0.050--0.060

(W/m.k)

Average 400℃

0.095--0.120

(200kg/m³)

Average 600℃

0.160--0.195

Theoretical Density kg/m³

200

Specification (mm)

300×300×250

Papers

Work Temp.: 1260℃

Application

Insulating material for sealing, anti-corrosion, insulating, electric-heating components, auto industry etc.

Technical Data

Papers

1260A

1260B

Shrinkage on heating %

1000℃×24h≤-3

Organic content

≤10

Theoretical volume and density kg/m³

200

Dimensions mm

Other sizes and shapes on request.

40000/30000/20000 ×1220/610 ×1/2/3

Wide: 1220, Thick:1

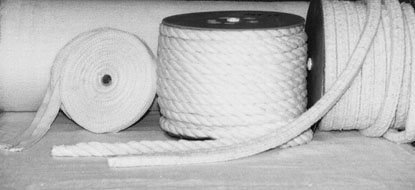

Textiles

Work Temp.: 1260℃

Application

Furnace curtains.

Insulation of high-temp pipe and container.

Gasket and wraping material.

Protecting material for cable and fuel pipes.

Technical Data

Textiles

1260

Type

ceramic fiber cloth

ceramic fiber belt

Theoretical density(kg/m³)

500

400/500

500

Specification (mm)

30000×1000/2200×2/3

30000×50/75/100×2/3

Type

ceramic fiber round braided rope

ceramic fiber square braided rope

Theoretical density (kg/m³)

500--650

Dimensions (mm)

ф 20--50,5/10 ladder No.

20×20

Organic content (%)

≤ 15 (cloth, belt, rope)

Mullite Crystal Fiber Needle-Punching Blankets

Work Temp.: 1600℃

Application

Lining for furnaces.

Sealing for furnace doors.

Heat-treatment furnaces etc.

Technical Data

Mullite Crystal Fiber

Needle-Punching Blankets

1600

Color

White

Tensile strength (Mpa)

≥0.02

Shrinkage on Heating (%)

1500℃×24h≤-3

Thermal conductivity (hot surface 1000℃) W/(m.k)

≤0.20

Density (kg/m³)

96±15;128±15

Dimensions (mm)

7200/3600×610×20/25

AL₂O₃ (%)

71--73

AL₂O₃+SiO₂ (%)

≥99

Fe₂O₃ (%)

≤0.2

K₂O+Na₂O (%)

≤0.2

Soluble Elements

Application

Soluble bulk is raw material of other soluble products.

Soluble blanket and board can be used for fire proofing and sound insulating fields.

Sealing and insulation for furnaces.

Refractory material for furnaces.

Technical Data

Soluble Elements

Soluble broad double-sides needle-punching blanket

Soluble fiber board

Soluble fiber soft paper

Classification Temperature

1260

Solubility (ppm)

≥ 200

Shrinkage on heating (% )

1000℃×24h, ≤-3

Water content (%)

--

≤1

≤1

Organic content (%)

--

≤5

≤10

Thermal conductivity W/(m.k) (average temperature 500℃)

≤0.153

Theoretical density (kg/m³ )

96±15;128±15

280±15;320±15

200±15

Tensile strength (Mpa )

≥0.04

Pressure-resistant strength ≥ 0.2

≥0.3

Chemical compositions (%)

SiO₂

57-67

--

--

Fe₂O₃

≤0.2

--

--

Al₂O₃

≤1

--

--

CaO+MgO

30-40

--

--

K₂O+Na₂O

≤0.2

--

--

Dimensions (mm)

3600×610/920×50
7200×610/1830×20

900×600×25/30/40/50

10000/20000/30000 /40000×610/1220×1/2/3/4/5

Coatings

Application

Surface stabilization in fileds of flame impingement, high velocity gases or chemical attack.

Technical Data

Coatings	1050	1400
Permanent linear change ％	950℃×24h≤-4	1200℃×24h≤-3
Thermal conductivity W/(m.k)	≤0.153(Hot side: 500℃)
Compressive strength MPa	0.2
Theoretical density (kg/m³ )	250
Dimensions	Bulk：20kg/bag Coating：20kg/barrel

E-mail: hoteksales@163169.net
