Ceramic Flexible Heaters

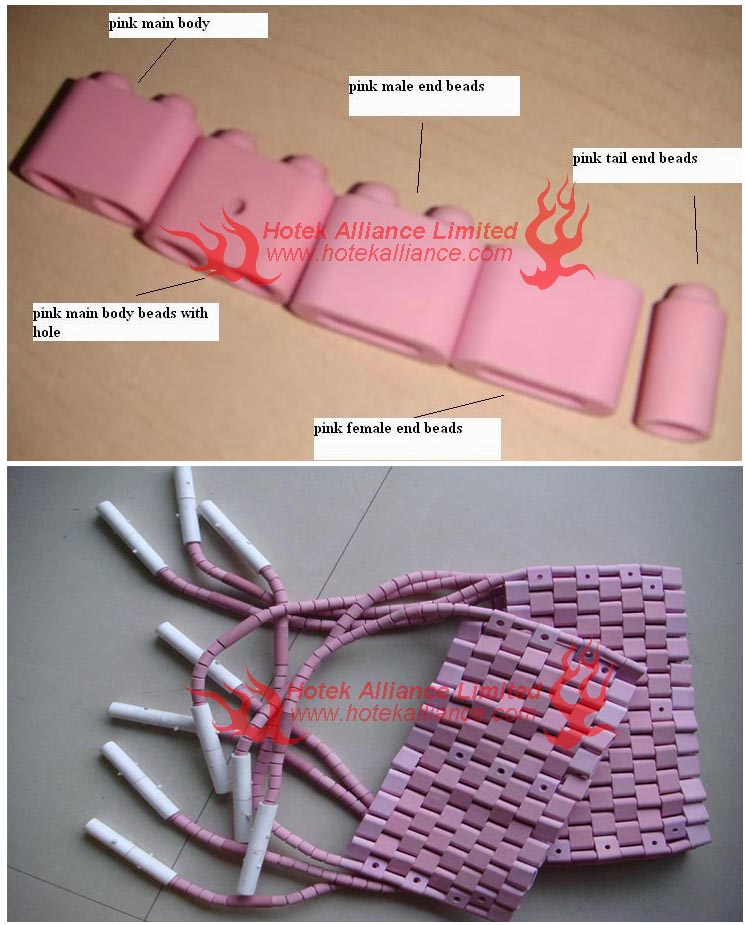

The heating element of the heater is multi-strand Nichrome wire. Insulation is interlocked beads that made from high grade alumina.





Max. Temp.:  1050℃

Good high heat transfer

Easy installation

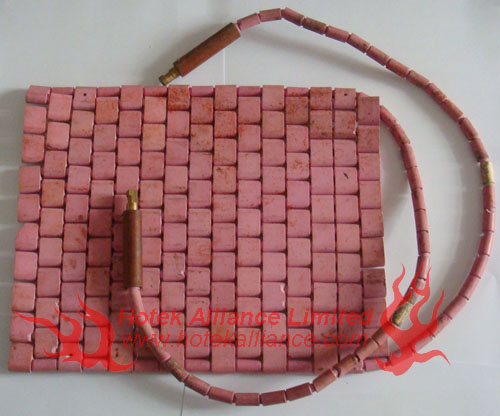

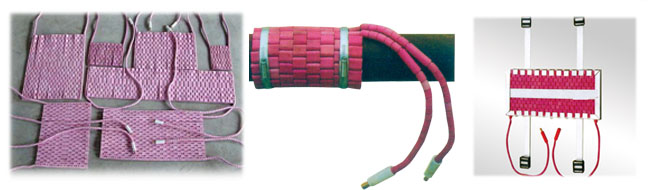

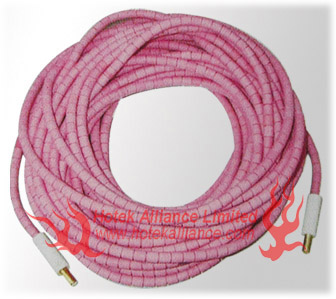

It can be made in wide range of sizes and shapes: mat, stand(rope) or half shapes.

You can bend it, can use a few of heaters at one time together, can wrap the heater onto the surface of what needs heat.





Preheat, post-heat and post-weld heat treatment of welding: large tower, container with high pressure, bridge, pipes with high pressure etc.













Heattreatment of pipes, join of pipes, elbow of pipes etc.

OD mm	Length mm	Heating Zone mm	Voltage V	Current A	Wattage W	Max. Temp. ℃
12	20	19.4	220	45	10	1050
12	10	9.4	110	45	5	1050
12	5	4.7	55	45	2.5	1050
12	2.5	2.5	28	45	1.3	1050
12	1.25	1.25	14	45	0.7	1050









Heattreatment of middle or small diameter pipes.
