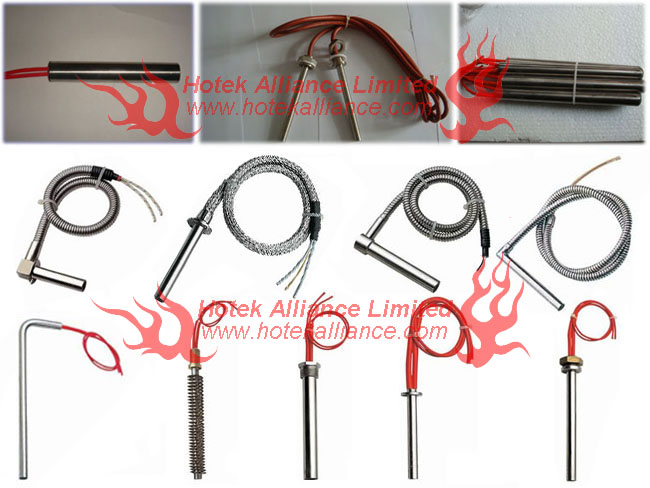

| Cartridge Heaters
The heater provides a convinient, dependable and efficient method of applying concentrated heater to solid metal components such as die blocks, molds, platens, sealing, foodservice, semiconductor etc. Also, they can be used to heat water and air. Most of the heaters are used in plastic and rubber industry. Also they service in medical, chemical, package, eletronics and so on lines.
The cartridge heaters are divided into two types by different application: one is anticorrosive and the other is restraining temperature cartridge heater.
Also, according to the working circumstance, we can choose high wattage density or low watt density cartridge heaters.
Standard Sheath Material
AISI304, SS316 and on custom requirement.
Standard Diameters
1/4¡å, 5/16¡å, 3/8¡å, 1/2¡å, 5/8¡å, 3/4¡å, 1¡å etc.
(6mm, 8mm, 10mm, 12mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 32~38mm)
Standard Leads
Silicon rubber wire, teflon lead, glass fibre lead, nickel lead, copper with nickel coated lead. Can be built with epoxy seal.
Mounting and fitting options are available to your requirements.
If need, a thermocouple can be built in the heater.
When you inquiry or order,please let us know these specifications:
Diameter, total length, length of heating zone, voltage, wattage, working temperature, working media, material of the heater. A drawing or draft is the best.
If our standard products don't fit your needs, we can design and build to your specifications.
| |
